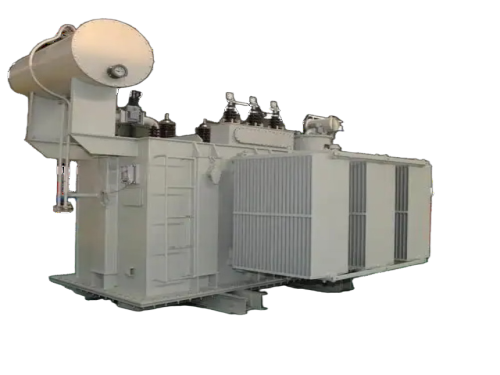

Mining oil immersed transformer

　　A mining oil-immersed transformer is a specialized power distribution device designed to operate safely and efficiently in harsh underground or open-pit mining environments, where explosive gases (e.g., methane), dust, moisture, and mechanical vibrations are prevalent. Here’s a detailed breakdown of its key features, applications, and technical specifications:

　　1. Design and Construction

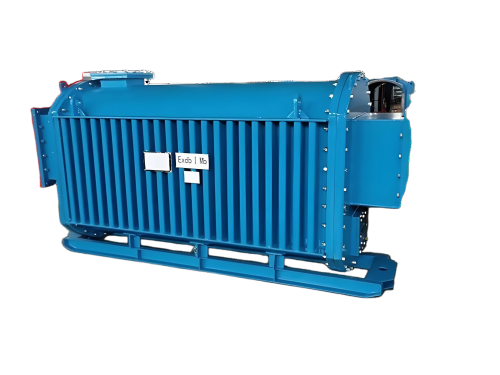

　　Explosion-Proof Enclosure:

　　Constructed with robust steel tanks capable of withstanding internal explosions. For example, the CEEG KBSGZY-6300/10/3.45 model features a hermetic corrugated tank design that meets stringent explosion-proof standards (e.g., ATEX/IECEx) .

　　High and low-voltage chambers are segregated to prevent arcing and ensure safety in gas-rich environments .

　　Insulation and Cooling:

　　Nomex Insulation Paper: Used in critical components to enhance fire resistance and thermal stability, even at high temperatures .

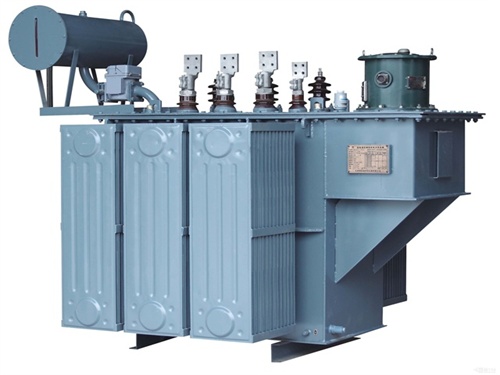

　　Oil Immersion with Enhanced Cooling:

　　ONAN (Oil Natural Air Natural): Standard for moderate loads, with oil circulation and radiator fins for passive heat dissipation.

　　Forced Cooling (OFAF/ODAF): Optional for high-power applications (e.g., 6300 kVA units) to handle continuous heavy loads in confined spaces .

　　Core and Windings:

　　High-Grade Silicon Steel: Reduces core losses and noise, critical for long-term reliability in dusty conditions .

　　Copper Windings: Optimized for low resistance and short-circuit withstand capability, ensuring durability during voltage surges .

　　2. Technical Specifications

　　Voltage Ratings:

　　Primary: 3.3 kV, 6 kV, 10 kV, 11 kV, 12.5 kV, or 13.8 kV .

　　Secondary: Typically 1 kV or 3.45 kV for heavy machinery (e.g., conveyors, crushers) .

　　Power Ratings:

　　Ranges from 100 kVA to 6300 kVA, with larger capacities available for mega-mining operations .

　　Cooling Methods:

　　Natural Cooling (ONAN): Suitable for normal load conditions.

　　Forced Oil Cooling (OFAF): Used in high-power units to maintain stable temperatures in heat-prone environments .

　　Short-Circuit Protection:

　　Designed to withstand high fault currents (e.g., up to 50 kA) for short durations, protecting equipment and personnel .

　　3. Safety and Compliance

　　Explosion-Proof Certification:

　　Complies with ATEX/IECEx (Europe) and UL 1561 (US) standards for use in Zone 1/21 hazardous areas .

　　Mechanical strength tested to withstand internal pressures of 0.8 MPa without deformation .

　　Fire Resistance:

　　Nomex insulation and high-flashpoint mineral oil (≥300°C) reduce fire risk. Some models use fluorocarbon coolants (e.g., 3M™ Novec™) for non-flammable operation, though these are less common in mining .

　　Grounding and Earthing:

　　Multiple grounding points and low-impedance paths minimize electrostatic discharge risks .

　　4. Operational Features

　　Overload Capability:

　　Handles 150% short-term overloads (up to 30 minutes) and 120% emergency overloads (up to 4 hours) per IEEE 354 standards, accommodating sudden power spikes from mining equipment .

　　Noise Reduction:

　　Low-noise designs (≤60 dB) meet environmental regulations in residential or urban mining areas .

　　Corrosion Resistance:

　　Powder-coated exteriors and galvanized components withstand moisture and chemical exposure in underground tunnels .

　　5. Maintenance and Reliability

　　Routine Checks:

　　Oil sampling and analysis every 6–12 months to monitor dielectric strength and detect contaminants .

　　Insulation resistance tests using a 2500 V megohmmeter to ensure integrity .

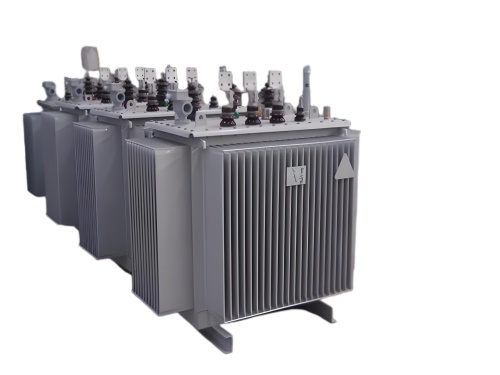

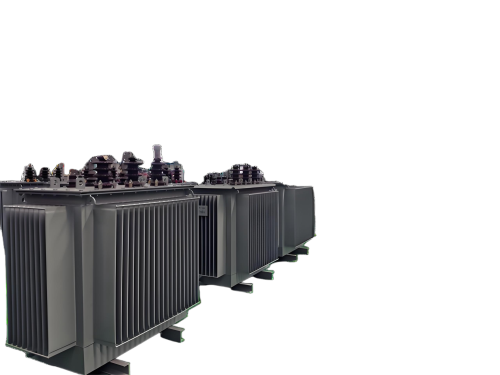

　　Hermetic Seals:

　　Eliminates the need for a conservator, reducing oil oxidation and maintenance frequency .

　　Lifespan:

　　20–30 years under normal conditions, with extended service life through predictive maintenance (e.g., dissolved gas analysis) .

　　6. Applications

　　Underground Mining:

　　Powering conveyors, pumps, ventilation systems, and electric locomotives in methane-rich environments .

　　Open-Pit Mining:

　　Supporting heavy machinery (e.g., draglines, shovels) and processing plants .

　　Renewable Integration:

　　Grid connection for solar/wind-powered mining operations, minimizing carbon footprint .

　　7. Certifications and Standards

　　Global Compliance:

　　IEC 60076: General transformer requirements.

　　GB/T 17468: Chinese standard for mining transformers.

　　AS 60076: Australian/New Zealand compliance for voltage and insulation .

　　Safety Testing:

　　Lightning impulse tests (125 kV for 10 kV models) and partial discharge measurements ensure reliability .

　　8. Cost and ROI

　　Initial Investment:

　　20–30% more expensive than standard oil-immersed transformers due to explosion-proof features.

　　Energy Savings:

　　High-efficiency designs (e.g., S20 equivalent) reduce energy losses by 10–15% compared to older models, with payback periods of 3–5 years .

　　9. Comparison with Dry-Type Transformers

　　Advantages of Oil-Immersed:

　　Better heat dissipation, lower noise, and suitability for outdoor/harsh environments.

　　Disadvantages:

　　Higher fire risk (mitigated by Nomex and fluorocarbon coolants) and bulkier design .

　　10. Emerging Trends

　　Fluorocarbon Coolants:

　　Non-flammable alternatives like 3M™ Novec™ 649 are gaining traction for fire-sensitive mines, though adoption remains limited due to cost .

　　Smart Monitoring:

　　IoT sensors for real-time temperature, oil quality, and load monitoring, enabling predictive maintenance .

　　Conclusion

　　Mining oil-immersed transformers are critical for ensuring safe and reliable power supply in hazardous mining environments. Their explosion-proof designs, robust construction, and high overload capabilities make them indispensable for modern mining operations. When selecting a transformer, prioritize certifications (ATEX/IECEx/UL), maintenance requirements, and compatibility with local grid standards. For large-scale projects, consulting manufacturers like CEEG or MGMT for custom solutions tailored to specific mining conditions is recommended.
