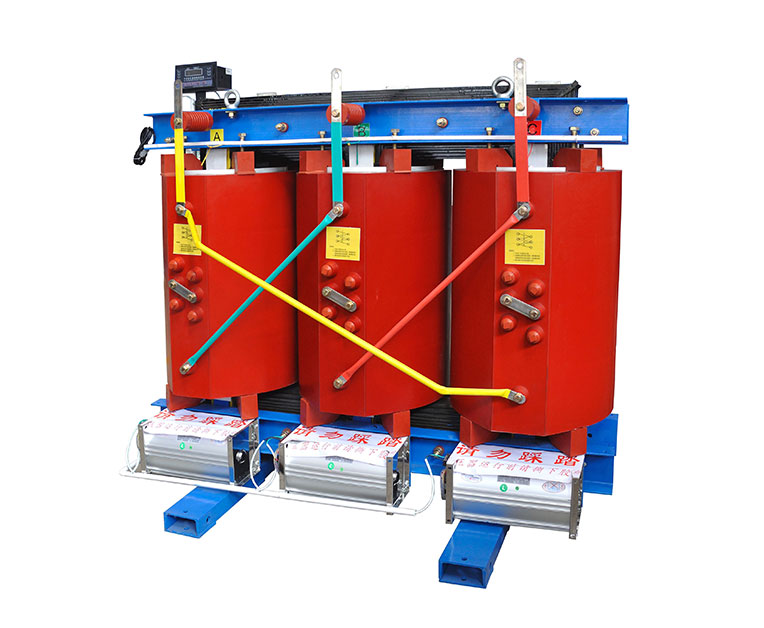

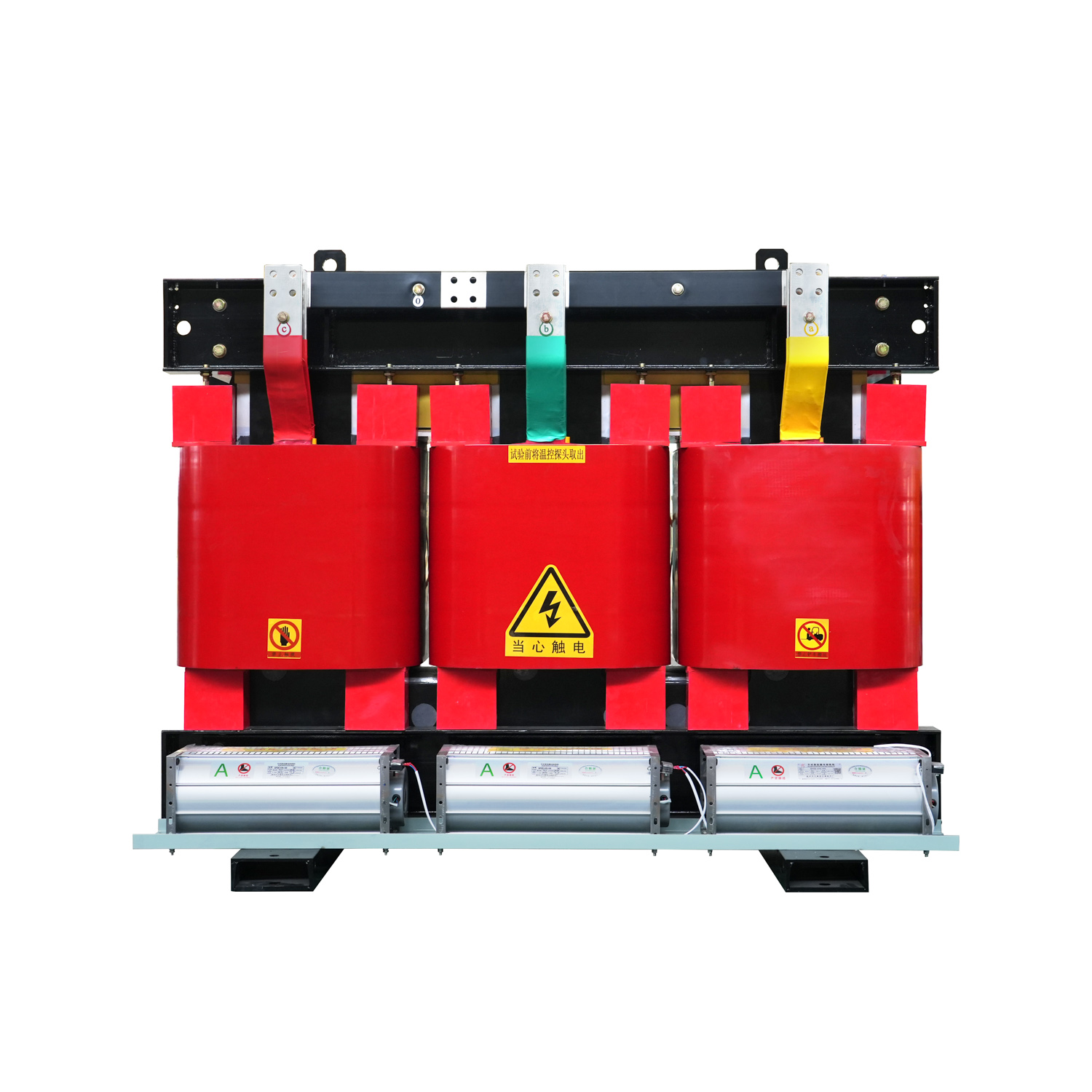

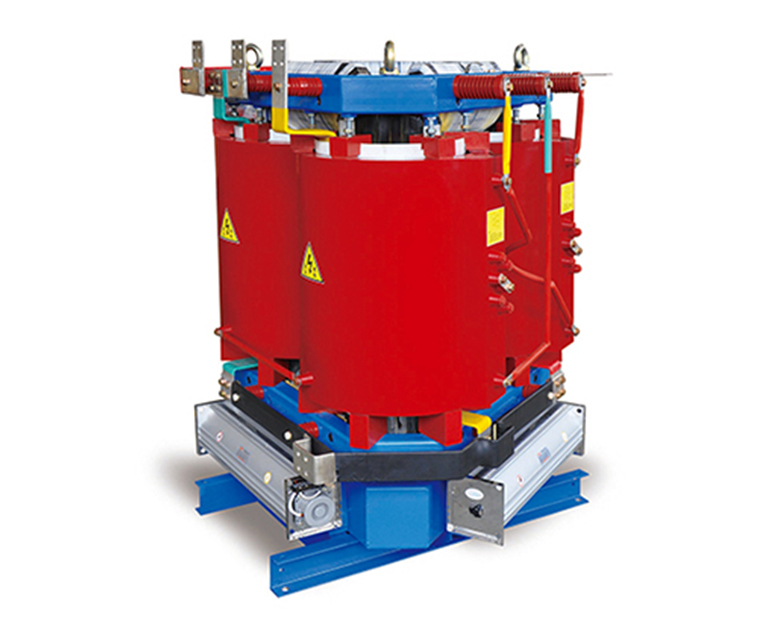

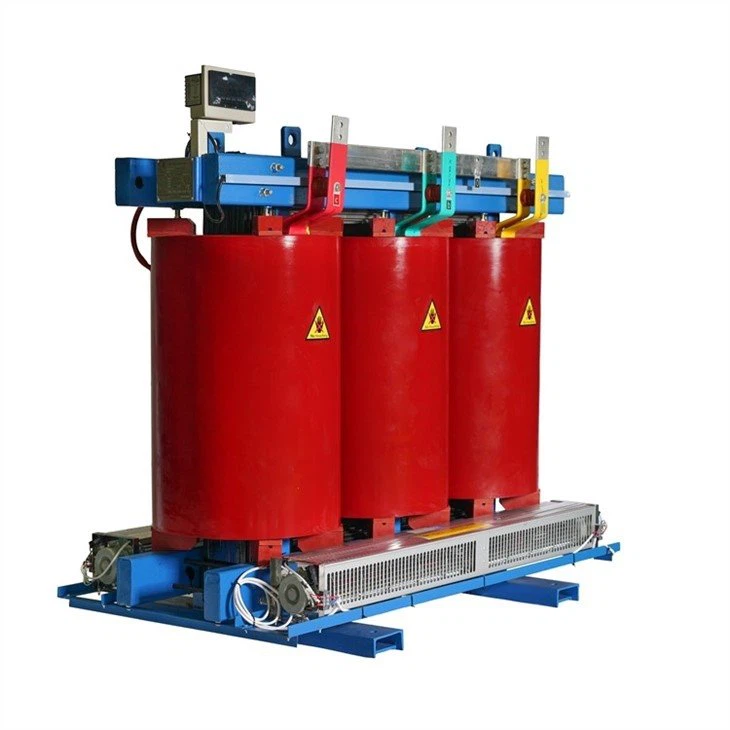

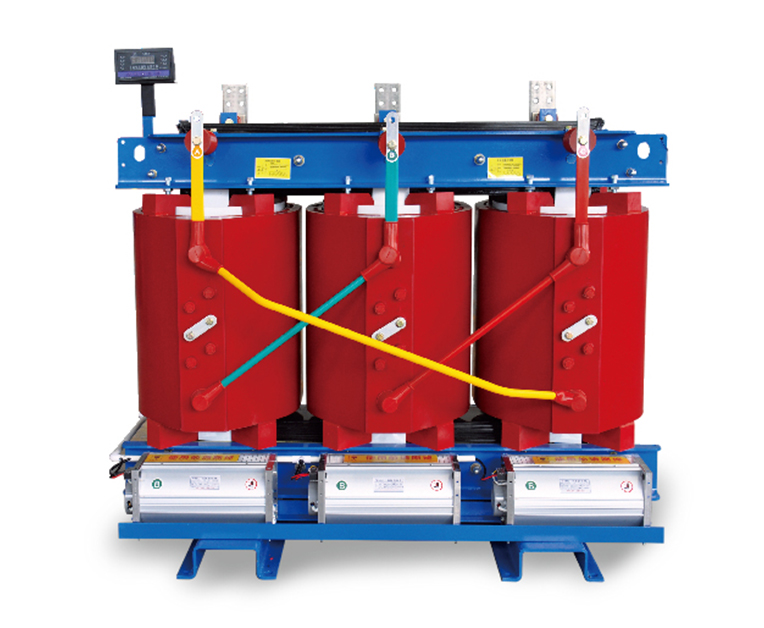

SCB14 Dry-type Transformer

　　Comprehensive Analysis of SCB14 Dry-type Transformer

　　I. Basic Overview

　　The SCB14 dry-type transformer is a common three-phase dry-type transformer with epoxy resin casting. In the model code, "S" stands for three-phase, "C" represents epoxy resin casting insulation, and "B" indicates low-voltage foil windings. The number "14" usually denotes the design serial number or energy efficiency rating identifier of this transformer series (though definitions may vary among different manufacturers, it is often associated with energy efficiency and technological iterations. The SCB14 series has seen improvements in energy efficiency and other aspects compared to earlier products). Instead of using insulating oil for cooling and insulation, it relies on air convection and possible auxiliary cooling methods (such as fan cooling) to maintain its normal operating temperature.

　　II. Technical Characteristics

　　1. High Efficiency and Energy Saving

　　The SCB14 dry-type transformer adopts advanced iron core materials and winding designs, effectively reducing no-load losses and load losses. Compared with earlier models, its no-load losses can be reduced by a certain percentage (the specific value varies depending on the manufacturer and capacity, but it is usually around 10% - 20%). The load losses are also significantly optimized, thereby improving the overall energy efficiency of the transformer and saving a substantial amount of electricity costs for users.

　　For example, in industrial plants or commercial buildings that operate for long periods, using the SCB14 dry-type transformer can result in considerable annual electricity cost savings compared to transformers with lower energy efficiency.

　　2. Environmental Performance

　　Since it does not use insulating oil, it avoids environmental pollution caused by oil leaks, being friendly to the ecological environment such as soil and water sources. At the same time, more attention is paid to the use of environmentally friendly materials and the optimization of production processes during manufacturing, reducing the emission of harmful substances.

　　It complies with the current national policy requirements for energy conservation, emission reduction, and environmental protection, making it an important choice for enterprises to achieve green development.

　　3. Safety and Reliability

　　The insulation structure with epoxy resin casting has good electrical performance, mechanical performance, and moisture and dust resistance, effectively preventing electrical faults caused by insulation aging, moisture, and other reasons.

　　The transformer is equipped with complete overload protection, short-circuit protection, and other functions. In the event of abnormal conditions, it can promptly cut off the circuit to protect the equipment and personnel safety.

　　For example, in places with high requirements for power supply continuity, such as hospitals and data centers, the high reliability of the SCB14 dry-type transformer can ensure a stable power supply.

　　4. Low-noise Operation

　　Advanced vibration reduction and noise reduction technologies are adopted to reduce the noise generated by the transformer during operation. Its noise level usually meets relevant national standards and will not cause interference to the surrounding environment and personnel.

　　It is particularly suitable for noise-sensitive places, such as distribution rooms near residential areas, schools, and libraries.

　　III. Structural Components

　　1. Iron Core

　　It is generally made of high-quality cold-rolled silicon steel sheets stacked together. The silicon steel sheets have the characteristics of high permeability and low losses, which can effectively reduce hysteresis losses and eddy current losses in the iron core.

　　The iron core has advanced lamination technology with tight joints, reducing the no-load current and no-load losses.

　　2. Windings

　　Both the high-voltage and low-voltage windings are wound using copper or aluminum foil (copper foil is more common). The winding process is precise, resulting in low resistance and low heat generation.

　　The windings are vacuum-cast with epoxy resin to form a solid整体 (integral structure), which has good insulation performance and mechanical strength, capable of withstanding certain mechanical stresses and short-circuit current impacts.

　　3. Insulating Materials

　　In addition to epoxy resin, other high-quality insulating materials such as insulating paper and insulating pads are also used to ensure that the transformer maintains good insulation performance under various operating conditions.

　　4. Enclosure and Accessories

　　Transformers are usually equipped with protective enclosures, which are generally made of steel plates or aluminum alloys and have the functions of protection, heat dissipation, and aesthetics.

　　Accessories include temperature controllers, fans, and connection terminals. The temperature controller can monitor the operating temperature of the transformer in real-time and automatically control the start and stop of the fan according to the temperature, achieving intelligent cooling control of the transformer.

　　IV. Application Scenarios

　　1. Commercial Buildings

　　Shopping malls, office buildings, hotels, and other commercial buildings have a large number of electrical equipment and high requirements for the reliability and safety of the power supply. The SCB14 dry-type transformer can meet their power demand, and its energy-saving and low-noise characteristics also comply with the requirements of commercial buildings for operating costs and environmental comfort.

　　For example, in a large shopping center, the SCB14 dry-type transformer provides a stable power supply for lighting, air conditioning, elevators, and other equipment in the mall, ensuring the normal operation of the mall.

　　2. Industrial Sector

　　In industrial plants with high environmental requirements, such as electronics, pharmaceuticals, and food industries, the SCB14 dry-type transformer does not produce oil pollution and has good moisture and dust resistance, making it suitable for the industrial production environment.

　　For some industrial enterprises with large load fluctuations, the transformer can also operate stably and reduce production costs through its energy-saving characteristics.

　　3. Infrastructure

　　Infrastructure projects such as subways, airports, and ports require reliable power guarantees. The SCB14 dry-type transformer has the advantages of safety, reliability, and convenient maintenance, making it suitable for use in these places.

　　For example, in subway stations, it provides power for the station's lighting, ventilation, signaling, and other systems to ensure the safe operation of the subway.

　　4. New Energy Field

　　With the development of new energy sources such as solar photovoltaic power generation and wind power generation, the SCB14 dry-type transformer has also been widely used. It can transform the voltage of the electricity generated by new energy sources and connect it to the grid or supply it to local loads.

　　V. Key Points for Selection

　　1. Capacity Selection

　　Determine the transformer capacity based on the total capacity of the electrical equipment, load characteristics, and future development plans. Generally, the rated capacity of the transformer should be slightly larger than the calculated load of the electrical equipment, and a certain margin should be considered to cope with load fluctuations and future expansion needs.

　　For example, if the calculated load of a factory is 800kVA and a certain load growth is expected in the future, a 1000kVA SCB14 dry-type transformer can be selected.

　　2. Voltage Level

　　Ensure that the rated voltage of the primary winding of the transformer matches the supply grid voltage, and the rated voltage of the secondary winding is consistent with the voltage requirements of the electrical equipment. In China, common rated voltages for the primary winding are 10kV and 35kV, and the rated voltage for the secondary winding is generally 0.4kV.

　　3. Cooling Method

　　The SCB14 dry-type transformer usually has two cooling methods: natural air cooling (AN) and forced air cooling (AF). Natural air cooling is suitable for places with relatively stable loads and high noise requirements; forced air cooling can improve the overload capacity of the transformer and is suitable for places with large load fluctuations or where the transformer needs to withstand large loads in a short time.

　　Users should choose the appropriate cooling method according to the actual use environment and load conditions.

　　4. Protection Level

　　Select an appropriate protection level for the transformer according to its installation environment. If the transformer is installed indoors in a relatively clean environment, a product with a lower protection level can be selected; if it is installed outdoors or in a dusty and humid environment, a higher protection level enclosure is required to prevent dust, moisture, etc., from entering the transformer and affecting its normal operation.

　　VI. Maintenance and Upkeep

　　1. Regular Inspections

　　Regularly check the appearance of the transformer for deformation, damage, discharge marks, etc. Check the sealing performance of the enclosure for any water or air leaks.

　　Check whether the connection terminals are loose, overheated, and whether the connecting bolts are tightened.

　　2. Temperature Monitoring

　　Pay close attention to the temperature value displayed by the temperature controller to ensure that the transformer operates within the allowed temperature range. If an abnormal temperature rise is found, promptly identify the cause and take corresponding measures, such as checking whether the cooling system is working properly and whether the load is too large.

　　3. Cleaning and Maintenance

　　Regularly clean the dust and debris on the surface of the transformer to maintain good heat dissipation. During the cleaning process, use a dry, soft cloth and avoid using sharp tools to scratch the transformer surface.

　　4. Preventive Tests

　　Conduct preventive tests on the transformer at specified intervals, such as insulation resistance tests, DC resistance tests, and AC withstand voltage tests, to promptly detect potential insulation defects and other problems in the transformer and ensure its safe and reliable operation.
