An amorphous alloy power transformer is a highly efficient and energy-saving transformer that utilizes amorphous alloy strip as its core material.
In-Depth Analysis of Amorphous Alloy Power Transformers
1. Product Overview
An amorphous alloy power transformer is a highly efficient and energy-saving transformer that utilizes amorphous alloy strip as its core material. Its core advantage lies in significantly reducing no-load and load losses through the unique physical properties of amorphous alloy materials, such as high magnetic permeability and low coercivity, thereby enhancing operational efficiency. This type of transformer is widely used in power grids, industrial, commercial, and other fields, making it an ideal replacement for traditional silicon steel transformers and aligning with China's "dual carbon" strategic goals.
2. Technical Characteristics and Performance Advantages
| Technical Characteristic | Detailed Description |
|---|---|
| High Efficiency and Energy Saving | No-load losses are reduced by 60%-80% compared to traditional silicon steel transformers, while load losses are reduced by 10%-15%. |
| Material Properties | Amorphous alloy strips (e.g., Fe-Si-B series) feature an atomically disordered structure, resulting in extremely low energy losses during magnetization. |
| Environmental Performance | The manufacturing process consumes less energy, reducing full lifecycle carbon emissions by approximately 50% and complying with RoHS environmental standards. |
| Operational Stability | Low magnetostriction coefficient leads to a noise level 5-10 dB lower than that of traditional transformers. |
| Short-Circuit Resistance | Compact core structure enhances short-circuit withstand capability by over 20%. |
3. Core Performance Parameters
| Parameter Category | Typical Value/Range | Description |
|---|---|---|
| Rated Capacity | 30KVA-5000KVA | Covers small to large distribution needs (e.g., SH15-630KVA, SH15-2500KVA models). |
| Voltage Class | High-voltage side: 10kV/35kV; Low-voltage side: 0.4kV | Standard power system configuration, with customizable voltage combinations supported. |
| Energy Efficiency Grade | National Grade 1 | Complies with GB 20052-2020 standards, with no-load loss limits significantly lower than those of traditional transformers. |
| Connection Group | Dyn11/Yyn0 | Ensures voltage stability and operational reliability. |
| Short-Circuit Impedance | 4%-6.5% | Enhances short-circuit withstand capability and ensures equipment safety. |
| Noise Level | <50dB (10 dB lower than national standards) | Optimized core and coil structures reduce noise pollution. |

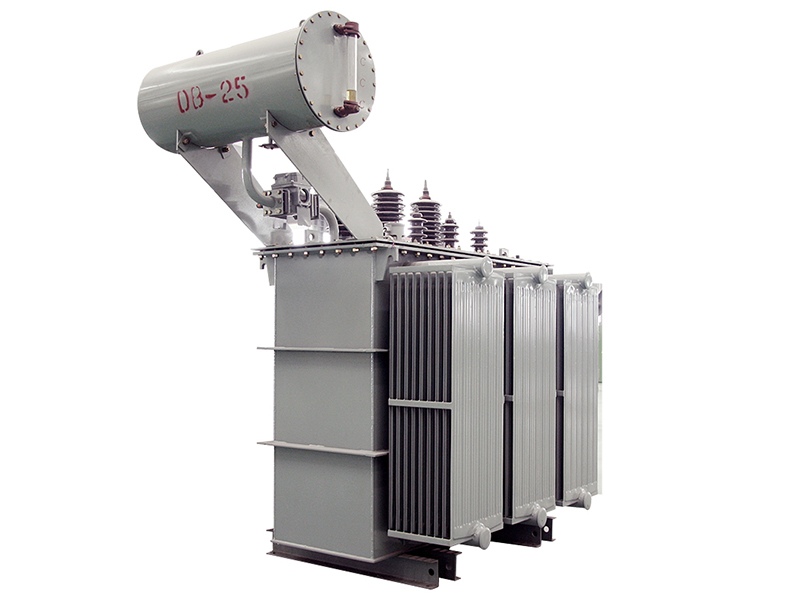

| Cooling Method | Oil-immersed self-cooling/Dry-type self-cooling | Suitable for various environmental requirements. |
4. Application Scenarios
Power Grid Sector
Distribution Network Upgrades: Serves as a core energy-saving device to reduce line losses and enhance power supply efficiency.
Renewable Energy Integration: Adapts to distributed energy systems such as photovoltaic and wind power, improving energy utilization.Industrial Sector
Heavy-Load Industries: Provides stable power supply for metallurgy, petrochemicals, mining, and other industries requiring high power, reducing energy waste.
Energy-Saving Retrofits: Replaces outdated, high-energy-consuming transformers with a short payback period (typically 3-5 years).Commercial and Public Facilities
Large Buildings: Reduces operational costs in shopping malls, hospitals, hotels, and other areas with high power quality requirements.
Data Centers: Offers stable and efficient power supply, reducing carbon emissions and meeting green data center standards.Special Environments
Outdoor/Humid Areas: High insulation oil protection level adapts to harsh climates.

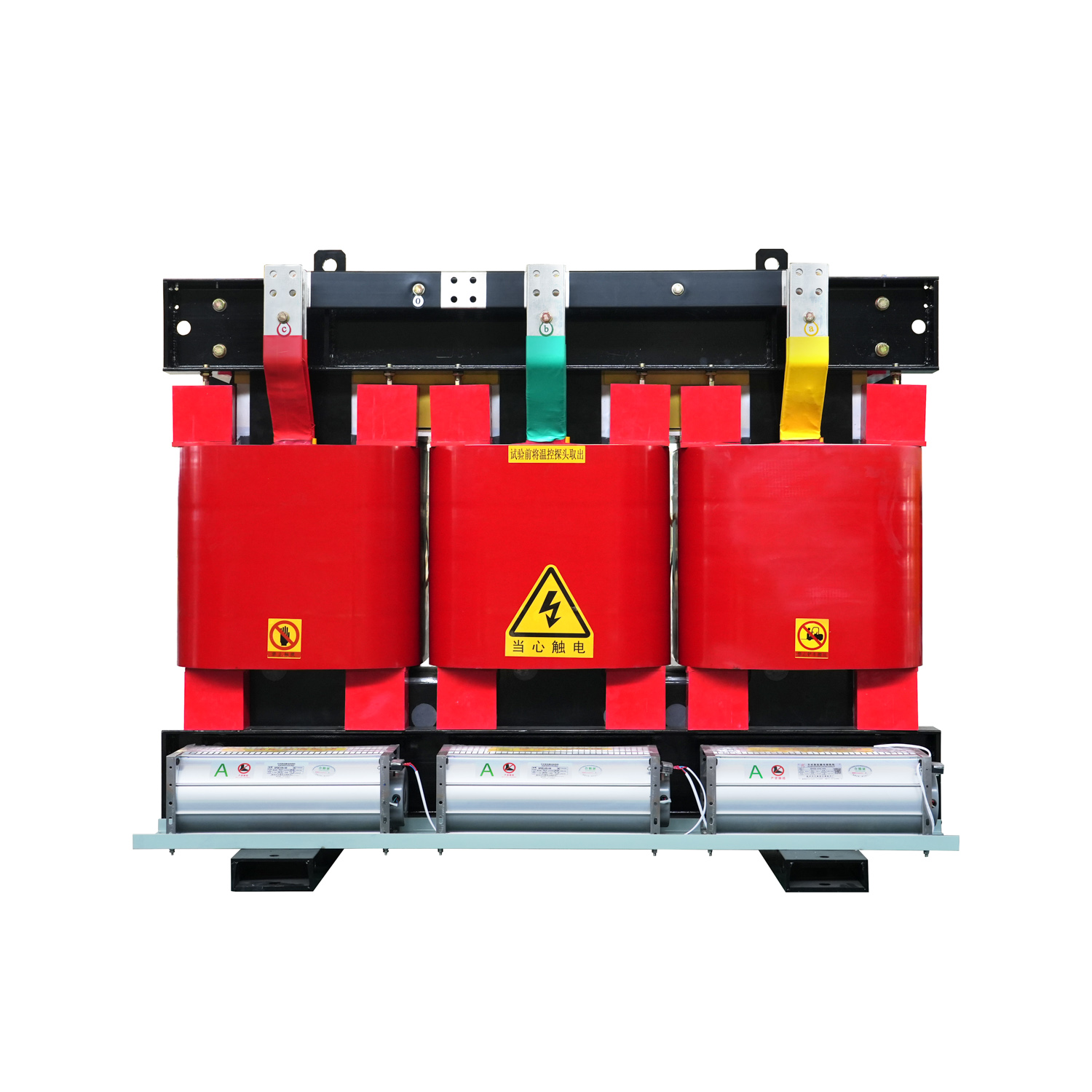

Fire-Safety-Critical Locations: Oil-free dry-type amorphous alloy transformers are safe and environmentally friendly.5. Market Situation
Demand Growth
Driven by the "dual carbon" policy, the market demand for amorphous alloy transformers is growing at an annual rate of 20%, particularly in the renewable energy and smart grid sectors.Competitive Landscape
Mainstream Manufacturers: Companies such as Zhixin Electric, Haihong Electric, and Shunte Electric compete through technological innovation and customized services.
Price Trends: Affected by fluctuations in the price of amorphous alloy strips, but stabilized by large-scale production.User Feedback
Significant Energy-Saving Effects: An industrial park saved over CNY 1 million annually in electricity costs.
Low Maintenance Costs: Oil-free design reduces maintenance workload by 50% (for dry-type models).6. Selection Recommendations
Capacity Matching: Select capacity based on load requirements, reserving 20% redundancy to avoid long-term overload operation.
Energy Efficiency Grade: Prioritize Grade 1 energy-efficient models to reduce long-term operational costs.
Environmental Adaptability: Consider the usage scenario (indoor/outdoor, temperature, humidity) to select the appropriate protection level.
Brand and After-Sales Service: Choose products from mainstream manufacturers to ensure after-sales support and technical assistance.
Special Requirements: Clearly specify configuration requirements for special functions such as intelligent monitoring, fire prevention, and explosion protection.Summary: Amorphous alloy power transformers offer core advantages in high efficiency, energy savings, environmental protection, and stability, making them suitable for power grids, industries, commerce, and special environments. During selection, it is essential to consider load requirements, environmental conditions, and budget, prioritizing Grade 1 energy-efficient products and paying attention to the manufacturer's after-sales service capabilities. Their widespread application will contribute to achieving the "dual carbon" goals and promoting the green transformation of energy.
