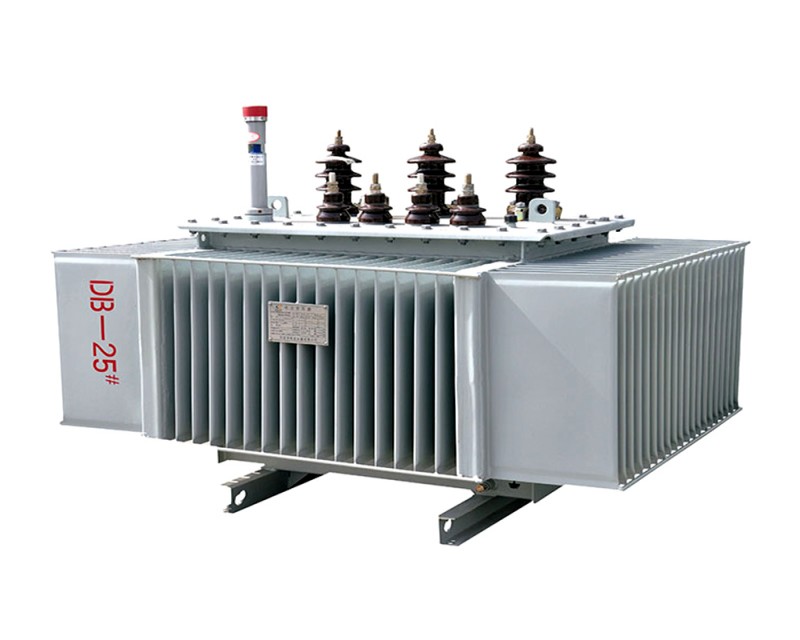

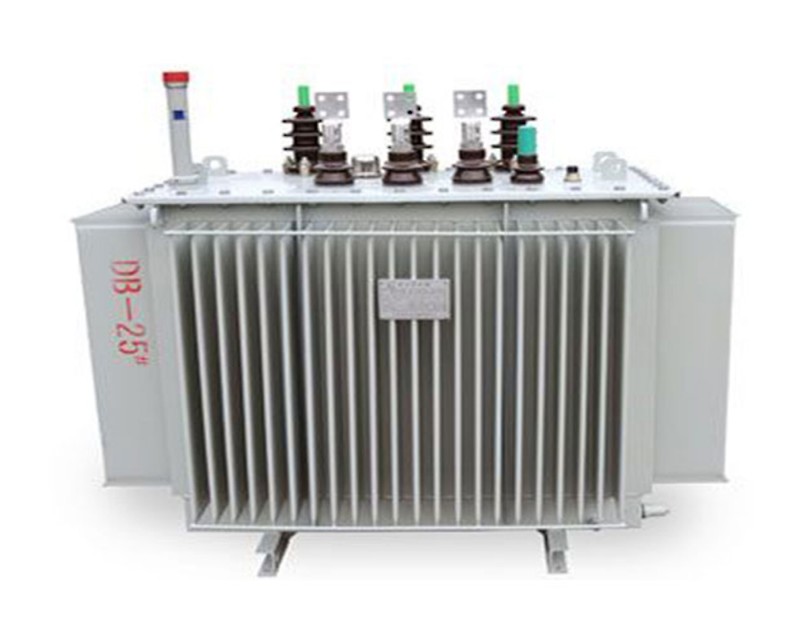

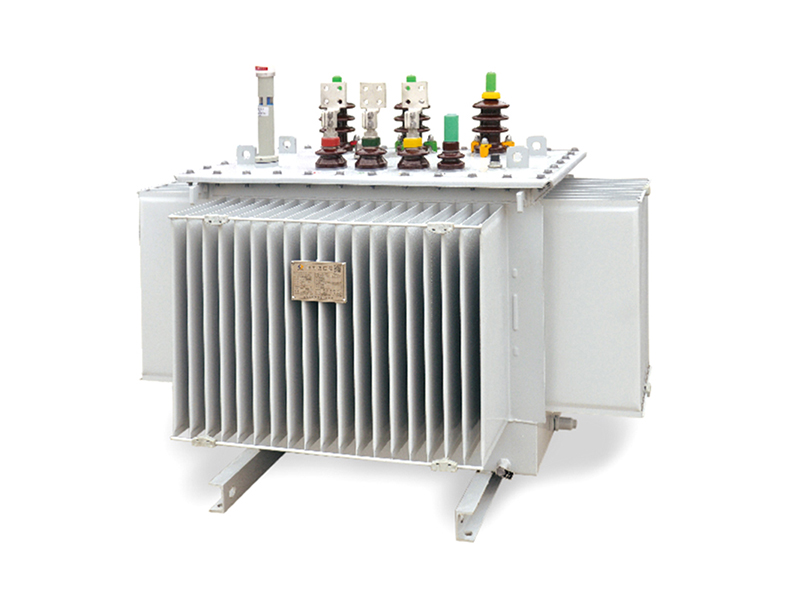

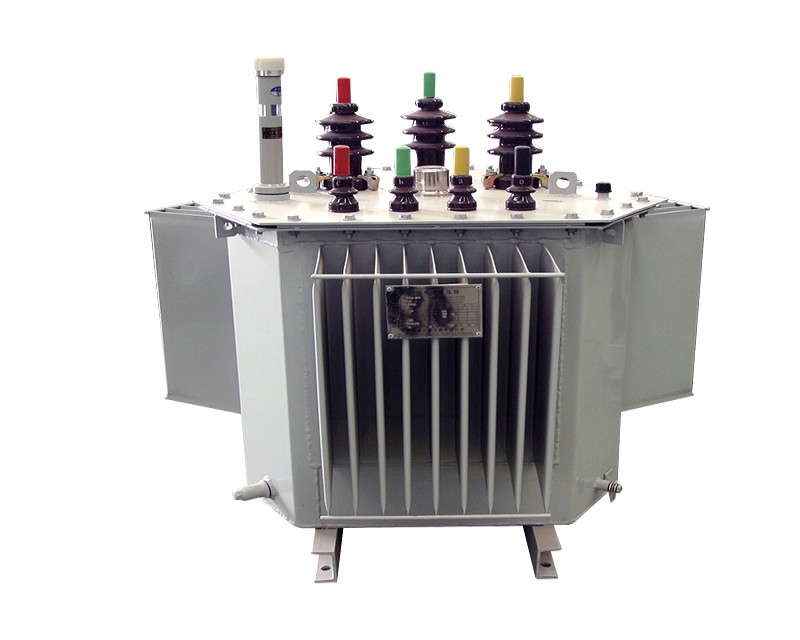

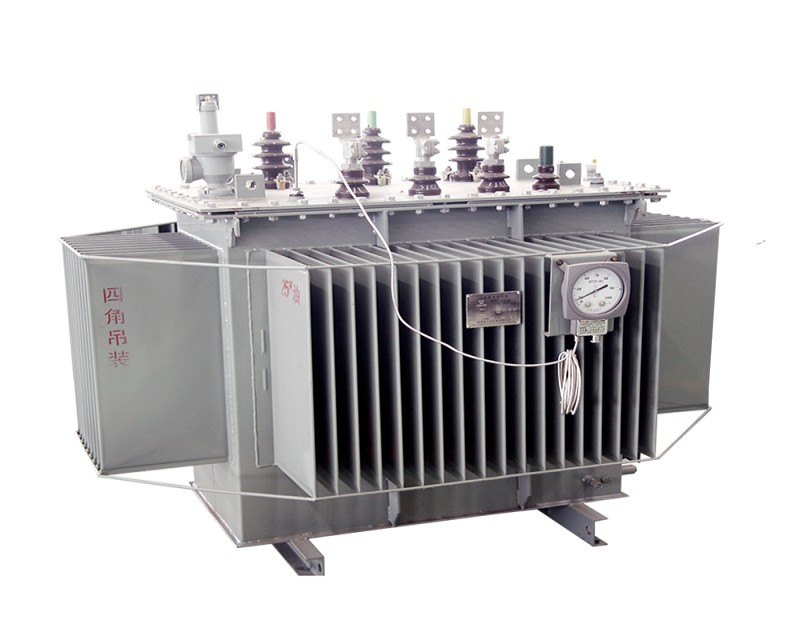

S22 oil immersed transformer

　　In-Depth Analysis of S22 Oil-Immersed Transformer

　　1. Product Overview

　　The S22 oil-immersed transformer is an upgraded, high-efficiency, energy-saving power transformer based on the S11 series, compliant with China's national Grade 1 or Grade 2 energy efficiency standards. Its core advantages lie in optimized electromagnetic design and the use of all-copper windings and high-quality iron cores, significantly reducing no-load and load losses while enhancing operational efficiency. This transformer model is widely applied in power, construction, industrial manufacturing, and other fields, making it an ideal choice for replacing outdated, high-energy-consuming transformers.

　　2. Technical Features and Performance Parameters

　　3. Core Advantages

　　High Efficiency and Energy Savings

　　Adopts amorphous alloy iron cores or high-permeability silicon steel sheets, reducing no-load losses by 20%–30% and load losses by 15%–25%.

　　Grade 1 energy efficiency models offer significant annual energy cost savings and a short payback period.Stable and Reliable

　　All-copper windings provide excellent conductivity, strong overload capacity, and improved short-circuit resistance.

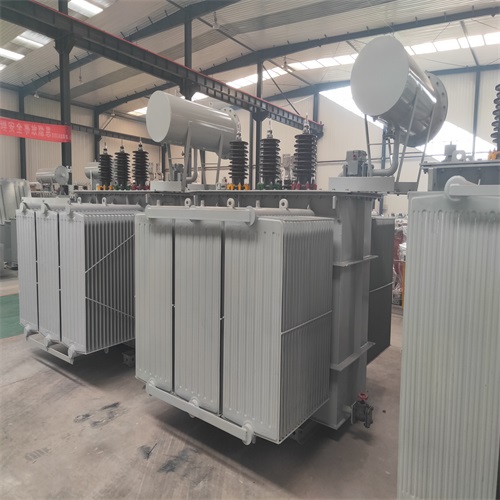

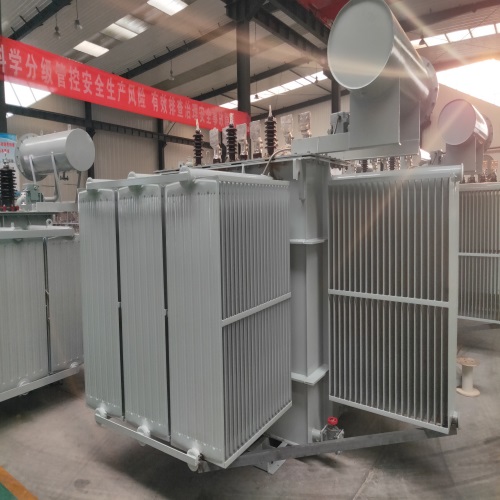

　　A robust cooling system (corrugated tank or plate-type radiators) ensures long-term stable operation.Environmentally Friendly and Safe

　　Insulating oil uses eco-friendly β-oil, which is non-toxic, harmless, and biodegradable.

　　A sealed structure prevents oil leakage, meeting environmental requirements.Cost-Effective

　　Lower procurement costs compared to dry-type transformers, with simple maintenance (regular oil changes and filtration).

　　Low lifecycle costs and significant long-term operational economy.4. Application Scenarios

　　Industrial Sector

　　Heavy-Load Industries: Metallurgy, petrochemicals, mining, etc., requiring high-power, stable power supply.

　　Selection Recommendations: Choose capacity based on load fluctuations, reserve redundancy, and prioritize temperature control protection devices.Commercial and Public Facilities

　　Large Buildings: Shopping malls, hospitals, hotels, etc., with high power quality requirements.

　　Selection Recommendations: Focus on noise levels (<50dB) and short-circuit impedance to ensure environmental comfort.Infrastructure

　　Power Plants/Substations: Serves as the core distribution equipment, improving system efficiency.

　　Selection Recommendations: Select high-voltage models and support customized designs.Special Environments

　　Outdoor/Humid Areas: High insulation oil protection grade, adaptable to harsh climates.

　　Selection Recommendations: Configure moisture-proof and anti-corrosion coatings to enhance environmental adaptability.5. Comparison with Dry-Type Transformers

　　6. Selection and Maintenance Recommendations

　　Selection Key Points

　　Capacity Matching: Select capacity based on load requirements, reserve 20% redundancy.

　　Energy Efficiency Grade: Prioritize Grade 1 energy efficiency models to reduce long-term operational costs.

　　Environmental Adaptability: Consider usage scenarios (indoor/outdoor, temperature, humidity) when selecting protection grades.Maintenance Practices

　　Regular Inspections: Check insulating oil level, quality, and external leakage every 6 months.

　　Cleaning and Maintenance: Clean radiator dust annually to maintain good heat dissipation.

　　Preventive Testing: Conduct insulation resistance tests, withstand voltage tests, etc., every 2–3 years to ensure stable performance.Summary: The S22 oil-immersed transformer excels in high efficiency, energy savings, stability, reliability, cost-effectiveness, and environmental friendliness, making it suitable for industrial, commercial, and infrastructure applications. When selecting, consider load requirements, environmental conditions, and budget. Prioritize Grade 1 energy efficiency products and pay attention to the manufacturer's after-sales service capabilities. Regular maintenance can extend equipment life and ensure long-term stable operation.
