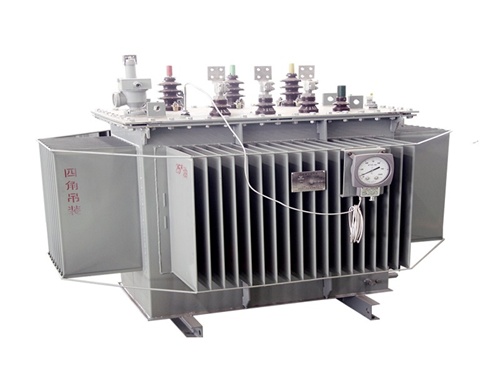

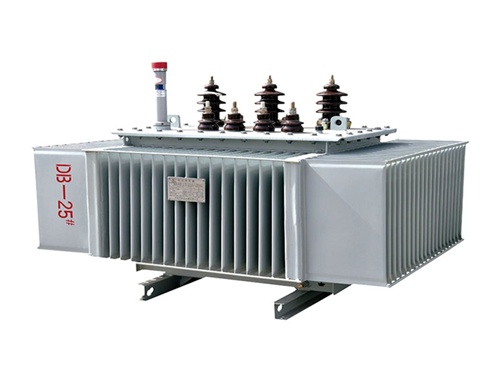

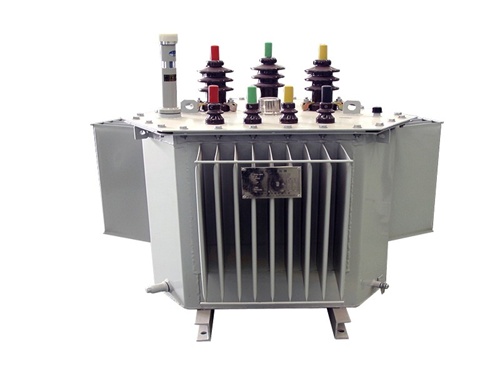

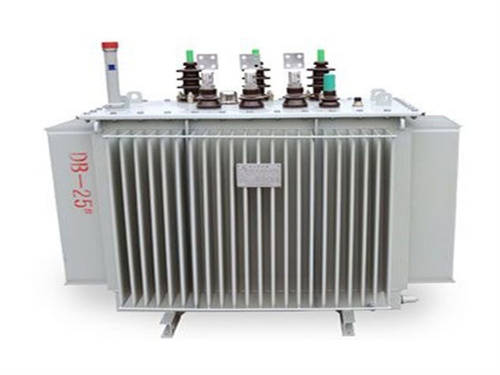

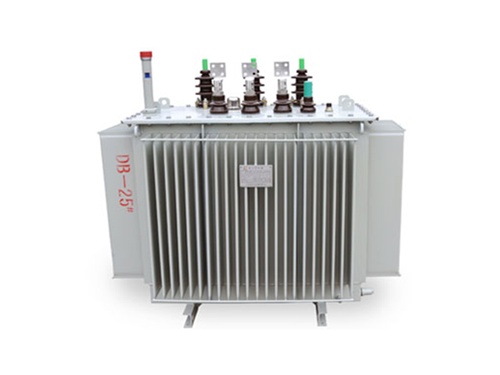

Enclosed Transformer

　　Detailed Explanation of Enclosed Transformers

　　1. Definition and Core Value

　　An enclosed transformer is an electrical device that fully encapsulates the transformer core (including the iron core and windings) within a metallic enclosure. Its core value lies in enhancing equipment safety, reliability, and environmental adaptability through physical isolation. Compared to traditional open-type transformers, the enclosed design effectively prevents the ingress of external dust, moisture, corrosive gases, and small animals, thereby avoiding risks such as reduced insulation performance and short circuits. It is particularly suitable for scenarios with stringent requirements for uninterrupted power supply.

　　2. Structural Characteristics and Technical Parameters

　　3. Technical Advantages and Application Scenarios

　　1. Technical Advantages

　　High Reliability: Reduces failure rates by over 60% (based on industry statistics), with an MTBF (mean time between failures) exceeding 100,000 hours.

　　Long Service Life: Insulation materials rated for Class F (155°C), with an expected lifespan of ≥30 years.

　　Low Noise: After acoustic treatment of the enclosure, operating noise ≤50dB (at 1 meter), meeting quiet requirements for hospitals, schools, etc.

　　Rapid Deployment: Modular design supports outdoor floor-mounted installation or integration into prefabricated substations, shortening installation cycles by 40%.2. Typical Application Scenarios

　　Industrial Sector: Heavy-pollution environments such as metallurgy and chemicals, replacing traditional oil-immersed transformers to reduce maintenance costs.

　　Commercial Buildings: Shopping malls, office buildings, etc., addressing safety hazards and noise issues associated with open-type transformers.

　　Renewable Energy: In photovoltaic power plants and wind farms, paired with SVGs (Static Var Generators) for reactive power compensation and harmonic mitigation.

　　Rail Transit: Traction power supply systems for subways and high-speed rail, adapting to extreme temperature variations from -40°C to 70°C.4. Selection and Operation & Maintenance Guidelines

　　1. Key Parameters for Selection

　　Capacity Matching: Recommended load rate between 60% and 80%. For example, for a total load power of 1200kW, prioritize a 1600kVA transformer.

　　Environmental Adaptation:

　　High-humidity areas (e.g., coastal regions): Select 316L stainless steel enclosure with hot-dip galvanizing treatment.

　　High-altitude areas (>3000m): Apply derating factors of 0.95 to 0.98 for capacity.Energy Efficiency Rating: Prioritize Grade 1 energy-efficient products (no-load loss ≤0.5% of rated capacity, load loss ≤3.5% of rated capacity).2. Key Points for Operation & Maintenance

　　Regular Inspections: Conduct quarterly checks on enclosure sealing, cooling fan operation, and grounding resistance (≤4Ω).

　　Intelligent Monitoring: Integrate temperature sensors and partial discharge monitors for remote early warning (e.g., via Modbus-TCP protocol for data upload).

　　Fault Handling: Common faults and countermeasures:

　　Overheating Alarm: Check if cooling fans have stopped and clean air filters.

　　Insulation Breakdown: Measure humidity inside the enclosure (should be ≤75%RH) and replace desiccants if necessary.

　　Abnormal Noise: Tighten loose components and inspect the iron core for poor grounding.5. Market Trends and Cost Analysis

　　1. Technical Trends

　　Intelligent Upgrades: Integration of edge computing gateways for advanced functions such as energy consumption analysis and load forecasting.

　　Eco-friendly Materials: Adoption of vegetable-based insulating oils (with a natural degradation rate >98%) to replace mineral oils, reducing fire risks.

　　Compact Design: Optimization of winding structures through 3D magnetic field simulations, reducing volume by 20% to 30%.2. Cost-Effectiveness

　　Initial Investment: 15% to 25% higher than open-type transformers, but total cost of ownership (TCO) reduced by over 30% throughout the lifecycle.

　　Energy-Saving Benefits: For a 1000kVA transformer, annual energy savings can reach 21,000 kWh (based on a 70% reduction in no-load loss).

　　Policy Incentives: Products compliant with the "Transformer Energy Efficiency Improvement Plan (2021-2023)" may qualify for local subsidies (e.g., 0.1 yuan/W in Beijing).6. Summary and Recommendations

　　Enclosed transformers significantly enhance the environmental adaptability and operational reliability of power equipment through structural innovations, making them particularly suitable for high-pollution, high-humidity, and high-safety-requirement scenarios. During selection, close attention should be paid to capacity matching, environmental protection levels, and energy efficiency standards. During operation and maintenance, emphasis should be placed on intelligent monitoring and preventive maintenance. With the development of renewable energy and smart grids, enclosed transformers will evolve towards higher power density and smarter control, becoming a key component in building new power systems.
