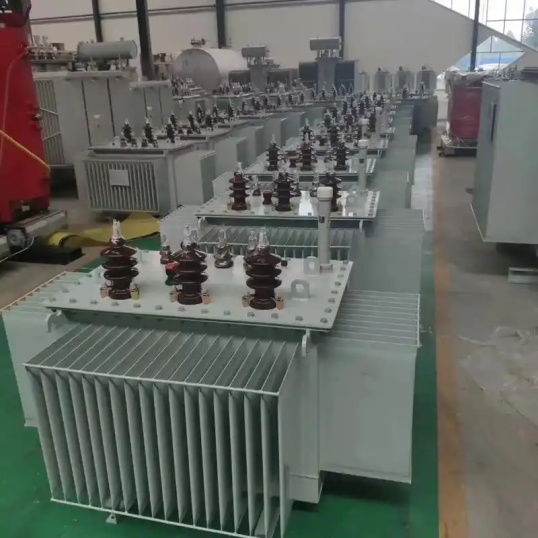

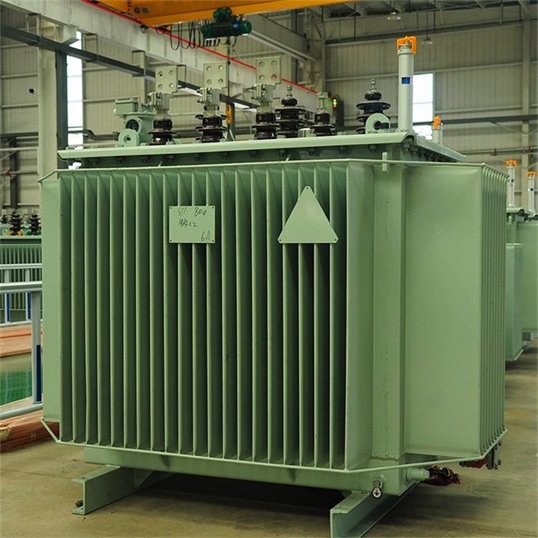

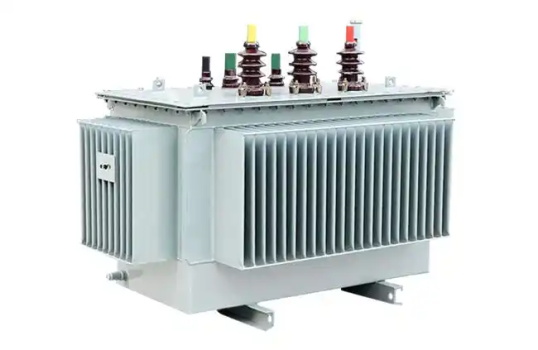

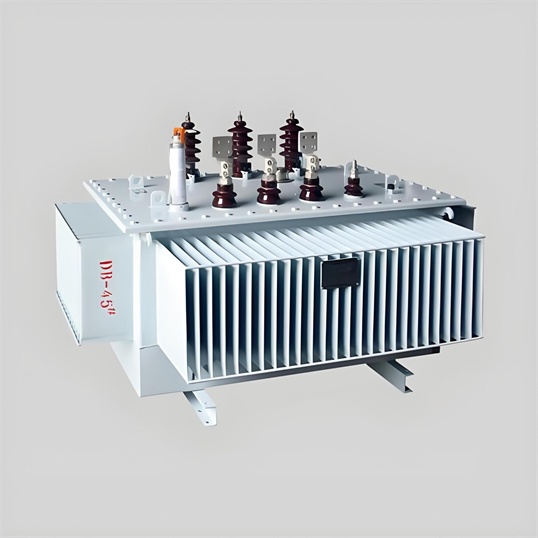

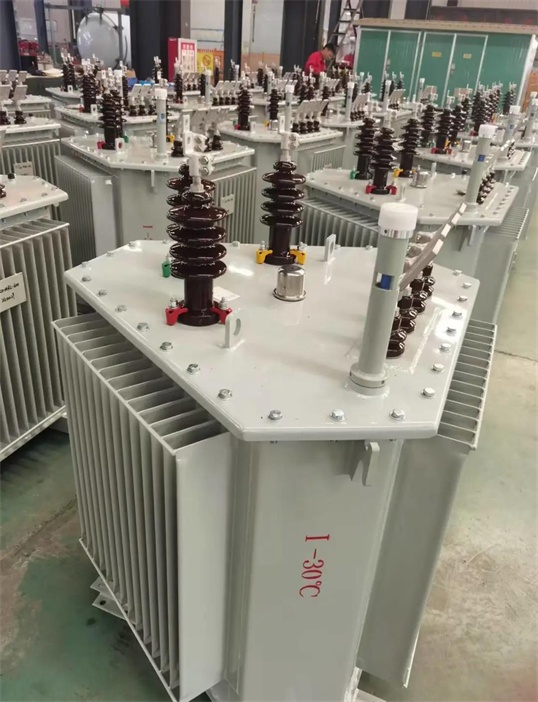

Amorphous alloy buried transformer

　　Amorphous alloy buried transformers represent a specialized class of distribution transformers designed for underground installation, combining the energysaving benefits of amorphous metal cores with robust burial capabilities. Here’s a detailed analysis based on technical specifications, market applications, and emerging trends:

　　1. Core Material and Construction

　　Amorphous Alloy Core:

　　Composed of rapidly cooled metallic alloys (e.g., ironbased) with a noncrystalline atomic structure, reducing noload losses by 60–80% compared to silicon steel cores . For example, a 2500 kVA amorphous transformer saves 21,000 kWh/year and reduces CO₂ emissions by 21 tons/year .

　　Lower saturation flux density (1.3–1.35 T) and higher resistivity minimize eddy current losses, making them ideal for lowload scenarios (e.g., residential areas with fluctuating demand) .

　　Design Challenges:

　　Amorphous alloy sheets (0.03 mm thick) require specialized handling to avoid mechanical stress, which can degrade performance. Manufacturers use fourframe fivelimb core structures and stressfree suspension systems to address this .

　　2. Cooling and Environmental Protection

　　Cooling Mechanisms:

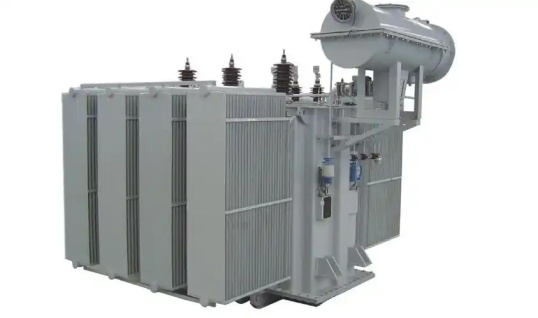

　　OilImmersed with Hermetic Sealing: Most buried models use mineral oil for cooling, combined with fully sealed tanks to prevent moisture ingress and corrosion. This design ensures IP68rated waterproofing and operates reliably in environments with temperature ranges from 25°C to +40°C .

　　Hybrid Cooling Systems: Advanced designs integrate watercooled jackets, heat pipes, and forced air circulation to enhance heat dissipation. For instance, a patented watercooling system uses a closedloop water circuit with external radiators and fans, reducing temperature rise by 30% compared to traditional oilimmersed units .

　　Noise Reduction:

　　Buried transformers feature noisedampening enclosures (e.g., soundabsorbing pads and acoustic cotton) to meet strict urban noise regulations. Swiss installations report noise levels ≤55 dB, comparable to residential ambient noise .

　　3. BurialSpecific Features

　　Enclosure Design:

　　Constructed with corrosionresistant materials (e.g., galvanized steel or fiberglass) and reinforced bases to withstand soil pressure. NEMA 3R or IP68rated enclosures protect against dust, water, and rodents .

　　Compact footprint (e.g., 400 kVA models occupy ≤1.5 m³) allows installation in narrow urban spaces, such as sidewalks or parks .

　　Installation Requirements:

　　Buried in concrete vaults or trenches with proper drainage to avoid flooding. The vault design must comply with local codes (e.g., IEEE C57.12.51 for burial depth and ventilation) .

　　Accessible via removable covers for maintenance, though routine checks (e.g., insulation resistance tests) are minimized due to sealed construction .

　　4. Performance and Standards

　　Efficiency:

　　Meet or exceed global efficiency standards, such as DOE Tier 2 (US) or CEE Tier 2 (Europe). For example, a 1000 kVA amorphous buried transformer achieves 99.5% efficiency at 35% load, reducing lifetime energy costs by 15–20% .

　　Standards Compliance:

　　GB/T 254462010 (China): Specifies technical parameters for oilimmersed amorphous transformers, including shortcircuit withstand and thermal endurance .

　　DL/T 18132018 (China): Provides guidelines for selecting buried amorphous transformers, emphasizing corrosion resistance and burial depth .

　　IEC 6007611: Applicable to drytype transformers but referenced for partial discharge limits (<10 pC) in hybrid designs .

　　5. Applications and Market Adoption

　　Urban Power Distribution:

　　Widely used in cities like Shanghai and Zurich to reduce visual impact and free up surface space. For instance, a 400 kVA buried transformer in Switzerland’s Bischofszell residential complex supports EV charging stations while blending with green spaces .

　　Industrial and Commercial Sectors:

　　Installed in factories and data centers (e.g., China Mobile’s facilities) where energy efficiency and fire safety are critical. Amorphous cores reduce standby losses by 75% compared to conventional models .

　　Renewable Energy Integration:

　　Used in solar and wind farms to step up voltage for grid connection. Their low noload losses are particularly beneficial for intermittent renewable sources .

　　6. Cost and Lifecycle Analysis

　　Initial Investment:

　　5–10% higher than cast resin drytype transformers due to amorphous alloy material costs . A 1000 kVA buried model typically costs $30,000–$50,000, depending on cooling system complexity.

　　Lifecycle Savings:

　　Energy savings recover the premium within 2–3 years. For example, a 1000 kVA unit saves $12,000/year in electricity costs, translating to $360,000 over 30 years .

　　Reduced maintenance (no oil changes) lowers operational costs by 50% compared to oilfilled aboveground transformers .

　　7. Innovations and Future Trends

　　Smart Monitoring:

　　Integration with IoT sensors for realtime temperature, oil level, and partial discharge monitoring. Predictive analytics enable proactive maintenance, reducing downtime by 40% .

　　Nanocomposite Insulation:

　　Emerging designs use nanomaterials (e.g., SiO₂ nanoparticles in epoxy) to enhance thermal stability and moisture resistance, extending lifespan in harsh burial conditions .

　　3DPrinted Components:

　　Prototyping of custom enclosures and cooling ducts for rapid deployment in niche applications, such as offshore platforms .

　　8. Challenges and Mitigation

　　Heat Dissipation:

　　Buried transformers have 15–20% lower overload capacity than aboveground units due to soil thermal resistance. Hybrid cooling systems and thermal conductivityenhanced backfill materials (e.g., graphiteimpregnated sand) mitigate this .

　　Regulatory Compliance:

　　Stringent burial regulations (e.g., EU’s Low Voltage Directive) require第三方认证 for safety and environmental impact. Manufacturers like CEEG and Wilson Power Solutions offer precertified solutions .

　　Conclusion

　　Amorphous alloy buried transformers offer a compelling balance of energy efficiency, space optimization, and environmental sustainability. While their upfront cost and heat management challenges demand careful planning, their lifecycle benefits make them indispensable for modern power grids. As smart grid technologies advance and material innovations reduce costs, these transformers are poised to play a pivotal role in the transition to decentralized, lowcarbon energy systems.
