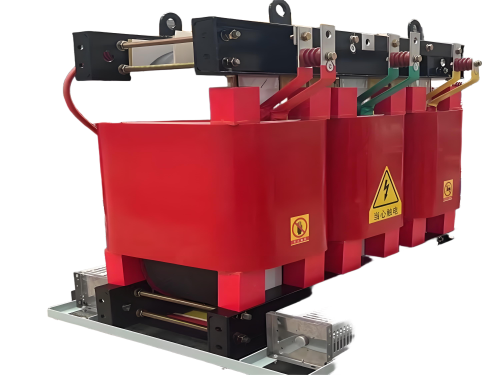

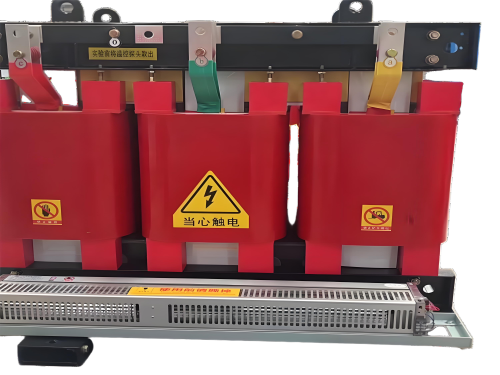

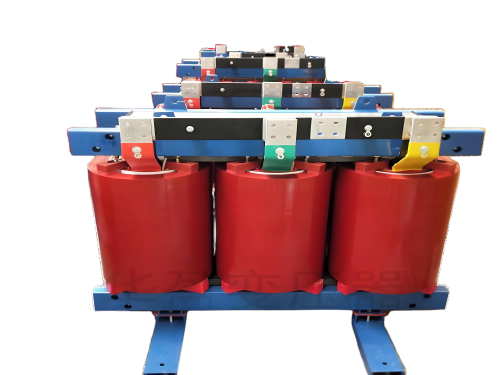

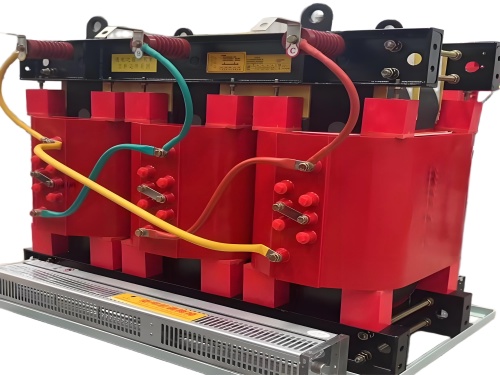

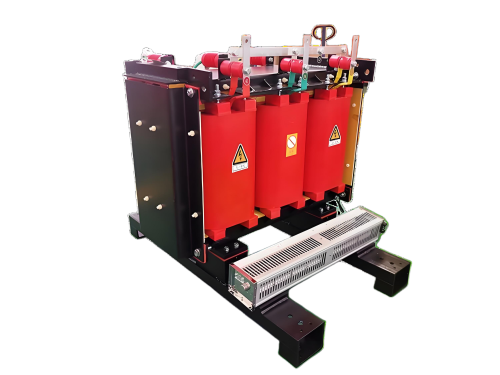

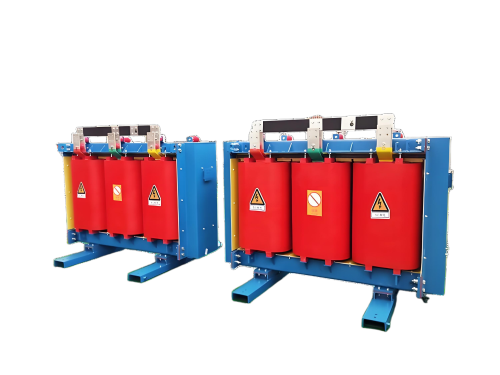

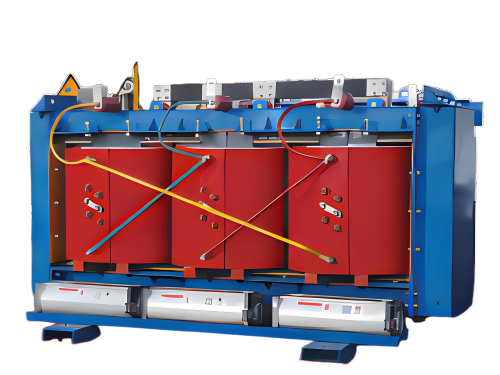

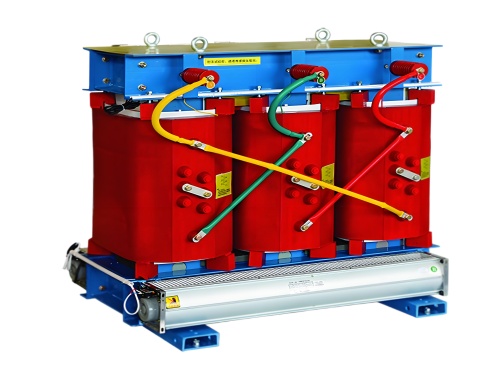

SCBH15-1600KVA amorphous alloy dry-type transformer

　　Technical Analysis of SCBH15-1600KVA Amorphous Alloy Dry-Type Transformer

　　I. Product Overview

　　The SCBH15-1600KVA is a dry-type transformer equipped with an amorphous alloy core, classified as a third-generation energy-efficient distribution transformer. Key features include:

　　Capacity: 1600KVA (suitable for medium-to-large industrial, commercial, and public facility power distribution).

　　Core Material: Amorphous alloy (Fe-based), offering high magnetic permeability and extremely low losses.

　　Insulation Class: Class H (temperature resistance of 180°C), providing superior safety and reliability compared to traditional Class F.

　　Protection Class: IP20–IP23 (customizable to higher levels, e.g., IP30/IP40).

　　Cooling Method: Natural air cooling (AN) or forced air cooling (AF), with the latter enhancing overload capacity.

　II. Technical Advantages

　　1. Significant Energy Efficiency

　　Reduced No-Load Losses: Compared to traditional silicon steel transformers (e.g., S11 type), no-load losses are reduced by approximately 60%–70%.

　　Example: The SCBH15-1600KVA has a no-load loss of ~1.1kW, whereas the S11-1600KVA has 2.8kW, resulting in annual energy savings of up to 15,000 kWh (based on 8,760 hours of operation).

　　Optimized Load Losses: Load losses are comparable to silicon steel transformers, but overall energy efficiency is significantly improved.

　　2. Outstanding Environmental Benefits

　　The production energy consumption of amorphous alloy cores is only 20% of that for silicon steel, reducing carbon emissions.

　　Low operating noise (≤50dB), making it suitable for noise-sensitive environments (e.g., hospitals, schools).

　　3. High Operational Stability

　　Class H insulation materials resist high temperatures and aging, extending the transformer’s lifespan (designed for ≥30 years).

　　The dry-type structure eliminates oil immersion, mitigating fire and explosion risks for enhanced safety.

　　III. Key Technical Parameters

　　IV. Application Scenarios

　　1. Industrial Sector

　　Suitable for high-energy-consuming industries such as steel, chemicals, and cement, reducing factory power costs.

　　Case Study: A steel plant achieved annual electricity cost savings of over 500,000 RMB, with a payback period of ~3 years after replacement.

　　2. Commercial Buildings

　　Shopping malls, office buildings, data centers, and other energy-efficient facilities.

　　Advantage: Reduces transformer room footprint and lowers air conditioning energy consumption (due to lower temperature rise).

　　3. Public Facilities

　　Hospitals, schools, rail transit, and other scenarios requiring high reliability and low noise.

　　V. Selection and Procurement Recommendations

　　1. Define Requirements

　　Load Characteristics: Determine load rate (e.g., continuous full load vs. intermittent load) to select appropriate capacity.

　　Environmental Conditions: Upgrade protection class (e.g., IP30) for high-temperature, high-humidity, or heavily polluted areas.

　　Efficiency Requirements: Prioritize products meeting GB 20052-2020 Tier 1 Efficiency standards.

　　2. Supplier Selection

　　Qualification Verification: Ensure the manufacturer holds CCC certification, type test reports, and ISO 9001 certification.

　　Technical Expertise: Prefer manufacturers with experience in amorphous alloy transformer R&D (e.g., Shunte Electric, Jinpan Technology).

　　After-Sales Service: Demand a 5-year warranty and 24-hour response commitment.

　　3. Cost Analysis

　　Initial Investment: Amorphous alloy transformers cost 15%–20% more than silicon steel transformers.

　　Lifecycle Cost: Energy savings yield a payback period of 3–5 years.

　VI. Frequently Asked Questions

　　Q1: Are amorphous alloy transformers prone to damage?

　　A: Amorphous alloy cores are brittle, but optimized design and manufacturing processes (e.g., annealing) ensure mechanical strength meets standards. Lifespan is comparable to silicon steel transformers under normal use.

　　Q2: Do they require special maintenance?

　　A: Dry-type transformers do not require oil changes, but regular dust cleaning (recommended every six months) and temperature control system checks are necessary.

　　Q3: Can they be used with high-harmonic loads?

　　A: Yes, but harmonic mitigation devices (e.g., active power filters) should be installed to prevent core overheating caused by harmonics.

　　VII. Conclusion

　　The SCBH15-1600KVA amorphous alloy dry-type transformer is a high-efficiency, low-loss power distribution device suitable for energy- and environment-conscious applications. During selection, prioritize energy efficiency ratings, supplier qualifications, and after-sales service. Evaluate investment value through lifecycle cost analysis. Proper selection can significantly reduce electricity costs and support enterprises in achieving green and low-carbon goals.

　　Recommended Manufacturers: Shunte Electric, Jinpan Technology, Jiangsu Huapeng (all leaders in the amorphous alloy transformer field).

　　Note: Avoid unqualified small manufacturers and ensure products pass national authority certifications.
