Closed control transformer

　　Technical Analysis and Application Prospects of Enclosed Transformers

　　1. Technical Overview

　　An enclosed transformer is a power equipment that fully encapsulates its core components (e.g., oil tank, windings, cooling systems) within a sealed metal enclosure. Its core design philosophy is to enhance operational reliability and safety by isolating internal components from external environmental factors such as humidity, dust, and corrosive gases. Based on structural differences, enclosed transformers are primarily categorized into fully sealed transformers and pad-mounted (box-type) transformers:

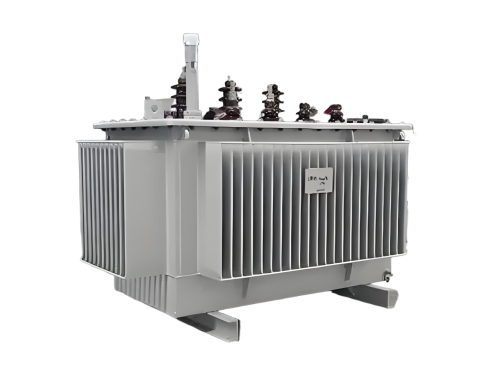

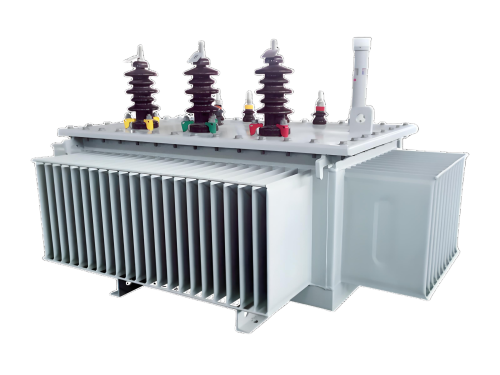

　　Fully Sealed Transformers: Utilize a metal enclosure and expansion-type radiators to completely isolate the internal environment, making them ideal for harsh conditions such as high altitudes, extreme cold, and humid climates.

　　Pad-Mounted Transformers: Integrate transformers, high/low-voltage switchgear, and control modules into a compact enclosure, offering modularity and portability. They are widely used in temporary power supply and urban distribution networks.

　　2. Core Technical Advantages

　　Enhanced Environmental Adaptability

　　Fully Sealed Design: Leverages high-voltage insulation materials and reliable sealing technologies to prevent oil leakage and external contaminant ingress, significantly extending equipment lifespan.

　　Pad-Mounted Transformers: Achieve IP20/IP23 protection ratings, defending against solid objects larger than 12mm and water droplets at angles up to 60°, ensuring suitability for outdoor environments.

　　Improved Safety Performance

　　Fully Sealed Transformers: Eliminate fire hazards and reduce maintenance frequency through hermetic design.

　　Pad-Mounted Transformers: Incorporate explosion-proof devices (e.g., pressure relief valves) and gas relays to automatically isolate power during faults, safeguarding personnel safety.

　　Energy Efficiency and Cost Optimization

　　Optimized Electromagnetic Design: Utilizes advanced materials like amorphous alloy cores (e.g., nanocrystalline materials) to reduce no-load losses and improve conversion efficiency.

　　Modular Design: Reduces on-site installation costs, with pad-mounted transformers enabling rapid deployment and shortened construction timelines.

　　3. Application Scenarios

　　Power Systems

　　Urban Power Grids: Serve as distribution nodes for voltage regulation and power allocation.

　　Renewable Energy Integration: Minimize transmission losses in wind and solar farms, enhancing renewable energy utilization.

　　Smart Grids: Integrate intelligent monitoring systems for remote condition monitoring and fault prediction.

　　Industrial Sectors

　　Mining and Metallurgy: Fully sealed transformers with explosion-proof designs meet requirements for high-dust, flammable, and explosive environments.

　　Petrochemicals: Corrosion-resistant enclosures resist chemical gas erosion, ensuring uninterrupted production.

　　Temporary and Mobile Power Supply

　　Construction Sites: Pad-mounted transformers rapidly establish temporary power grids to support construction machinery.

　　Emergency Response: Mobile pad-mounted transformers with integrated power generation modules provide emergency electricity for disaster-stricken areas.

　　Commercial and Residential Areas

　　Commercial Complexes: Pad-mounted transformers enable concealed installation, saving space and enhancing architectural aesthetics.

　　Residential Communities: Underground power distribution rooms adopt enclosed transformers to reduce noise and prevent animal intrusion.

　　4. Technological Development Trends

　　Material Science Breakthroughs

　　Advanced Core Materials: Research higher-saturation magnetic flux density materials (e.g., nanocrystalline alloys) for amorphous cores to further reduce no-load losses.

　　Eco-Friendly Insulating Media: Explore alternatives to mineral oil, such as natural ester oils, to minimize environmental impact.

　　Intelligent Manufacturing and Digitalization

　　Automated Production: Deploy automated winding and laser welding processes to boost efficiency and reduce human error.

　　IoT Integration: Embed IoT sensors for predictive maintenance and equipment health management (PHM).

　　Integrated and Modular Design

　　Prefabricated Smart Substations: Develop compact solutions integrating transformers, switchgear, and protection devices to shorten delivery cycles.

　　High-Voltage Expansion: Extend product ranges to 35kV and above to meet ultra-high-voltage transmission demands.

　　5. Market and Policy Drivers

　　Growing Market Demand

　　Global investments in smart grids are projected to reach $500 billion by 2030, driving demand for enclosed transformers.

　　Grid upgrades and renewable energy integration projects in Asia-Pacific (especially China and India) are key growth drivers.

　　Policy Support

　　China: The Transformer Energy Efficiency Upgrade Plan (2021–2023) mandates energy efficiency standards for new transformers, accelerating adoption of high-efficiency models.

　　EU: The Green Deal enforces energy efficiency upgrades for grid equipment, promoting exports of eco-friendly enclosed transformers.

　　Competitive Landscape

　　Global Market: Dominated by ABB, Siemens, Schneider Electric, and others, with Chinese manufacturers (e.g., TBEA, Baoding Tianwei) gaining market share through cost advantages.

　　Technological Differentiation: Innovations such as three-dimensional wound cores and smart monitoring systems become critical competitive factors.

　　6. Conclusion

　　Enclosed transformers have emerged as cornerstone devices in modern power systems due to their high reliability, robust environmental adaptability, and smart integration potential. As material science, intelligent manufacturing, and digital technologies converge, their applications will expand into extreme environments (e.g., deep-sea, polar regions) and emerging sectors (e.g., EV charging stations, data centers). In the future, enclosed transformers will transcend their role as mere power transmission carriers to become pivotal nodes in smart grids and energy internet ecosystems, providing critical support for global energy transition initiatives.
