Mining Transformer

　　In-Depth Analysis of Mining Transformers

　　1. Core Definition and Classification

　　Mining transformers are specialized transformers designed exclusively for mining environments, requiring stringent compliance with explosion-proof, moisture-proof, corrosion-resistant, and vibration-resistant standards. They are categorized based on application scenarios:

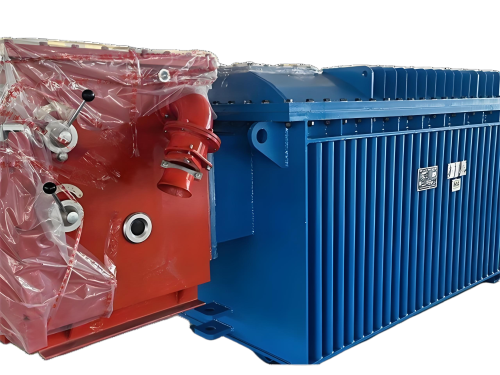

　　Underground Mining Transformers: Used in underground operations of coal mines, metal mines, etc., requiring explosion-proof, moisture-proof, and mechanical shock-resistant capabilities.

　　Open-Pit Mining Transformers: Deployed in surface mines, designed to withstand harsh conditions such as high temperatures, sandstorms, and vibrations.

　　2. Key Technical Characteristics

　　3. Typical Application Scenarios

　　Underground Coal Mine Power Supply: Provides 660V/1140V power for shearers, scraper conveyors, hydraulic supports, etc.

　　Metal Mine Processing Plants: Supplies 3.3kV/6kV high-voltage power for crushers, ball mills, flotation cells, etc.

　　Open-Pit Mine Transport Systems: Offers mobile power solutions (e.g., mobile mining substations) for mining trucks, belt conveyors, etc.4. Structural and Design Optimizations

　　Enclosure Materials: High-strength steel or stainless steel with thickness ≥6mm, offering superior impact resistance compared to standard transformers.

　　Cooling Methods:

　　Underground Type: Typically uses oil-immersed natural cooling (ONAN) or forced-air cooling (ONAF) to avoid water-cooling system risks.

　　Open-Pit Type: May employ forced oil-circulated air cooling (OFAF) for high-temperature environments.Sealing Design: Double-layer sealing structure prevents moisture and coal dust intrusion, extending insulation oil lifespan.5. Safety and Environmental Requirements

　　Explosion-Proof Certification: Complies with standards such as GB 3836 (China) and IEC 60079 (International).

　　Eco-Friendly Insulation Oil: Premium models use natural esters (e.g., soybean-based oils), which are biodegradable and reduce fire/environmental risks.

　　Low-Noise Design: Noise levels ≤65dB(A) to minimize impact on underground workers.6. Maintenance and Fault Handling

　　Routine Inspections:

　　Check enclosure integrity and sealing.

　　Monitor oil temperature, level, and insulation resistance.Fault Prevention:

　　Conduct regular dissolved gas analysis (DGA) of insulation oil to detect partial discharges.

　　Perform preventive tests (e.g., DC resistance, dielectric loss tests) every 3 years.Typical Faults:

　　Winding Short Circuits: Often caused by insulation aging or mechanical damage, requiring immediate shutdown for repair.

　　Insulation Oil Deterioration: Resolved by vacuum oil filtration or replacement with eco-friendly insulation oil.7. Development Trends

　　Intelligentization: Integration of online monitoring systems (e.g., partial discharge, temperature sensors) for predictive maintenance.

　　Miniaturization and Lightweighting: Adoption of amorphous alloy cores to reduce no-load losses and weight (facilitating underground transport).

　　High-Voltage Levels: Development of 35kV-class mining transformers to minimize intermediate voltage-stepping stages and improve power supply efficiency.8. Selection Recommendations

　　Based on Load Characteristics:

　　For frequently started/stopped equipment (e.g., crushers): Select models with strong overload capabilities.

　　For long-distance power supply: Prioritize high-voltage levels (e.g., 6kV/10kV) to reduce line losses.Based on Environmental Conditions:

　　High-gas mines: Must use flameproof models (Ex d I Mb).

　　Humid environments: Strengthen enclosure sealing and moisture-proof design.9. Conclusion

　　Mining transformers are critical for safe and efficient mine operations, requiring designs that balance explosion-proof, moisture-proof, durability, and intelligent capabilities. As mining industries transition toward green and intelligent practices, future mining transformers will emphasize eco-friendly insulation materials, online monitoring technologies, and energy efficiency optimizations, providing more reliable and cost-effective power solutions for mines.

　　(For specific model recommendations or technical parameter comparisons, please provide detailed application scenarios and load requirements.)
