Outdoor enclosed integrated transformer

　　The Outdoor Enclosed Integrated Transformer (OEIT), also known as a prefabricated substation or compact substation, is a modular power distribution solution that integrates high-voltage switchgear, transformers, low-voltage panels, and intelligent monitoring systems into a weatherproof enclosure. Designed for outdoor deployment, it offers rapid installation, space efficiency, and advanced functionality for modern power grids. Below is a comprehensive analysis based on technical specifications, applications, market trends, and installation considerations:

　　I. Core Technical Features

　　1. Structural Design

　　- Modular Integration: Combines high-voltage switchgear (e.g., ring main units), transformers (oil-immersed or dry-type), and low-voltage distribution systems into a single enclosure.

　　- Typical Layout:

　　- High-Voltage Compartment: Houses circuit breakers, fuses, and surge arresters.

　　- Transformer Compartment: Features energy-efficient transformers (e.g., SH15 amorphous alloy models with 10% lower losses than S13 types ).

　　- Low-Voltage Compartment: Includes circuit breakers, meters, and reactive power compensation devices.

　　- Enclosure Materials: Galvanized steel or stainless steel with IP54/IP67 protection against dust, water, and corrosion .

　　- Compact Footprint: Occupies 1/3–1/5 the space of traditional substations, ideal for urban areas with limited land . For example, a 1250kVA OEIT measures ~4.5m × 2.5m × 2.5m .

　　2. Transformer Technology

　　- Amorphous Alloy Core: SH15 models reduce no-load losses by 70–80% compared to silicon steel alternatives, meeting China’s GB 20052-2020 Class 1 energy efficiency standard .

　　- Example: SH15-1250KVA has a no-load loss of 530W and load loss of 12,000W .

　　- Dry-Type or Oil-Immersed:

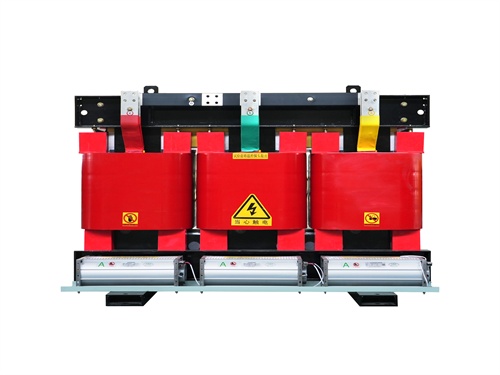

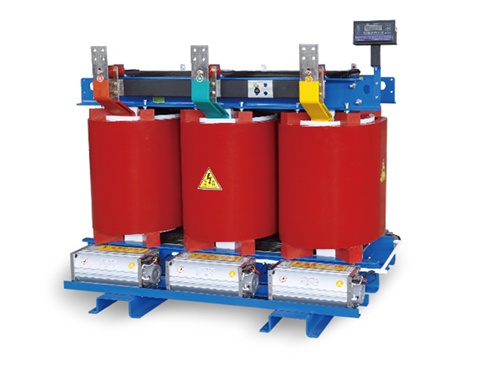

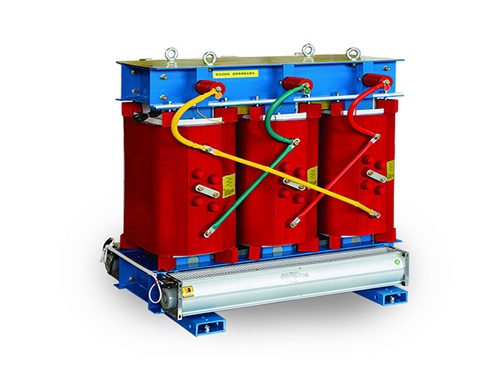

　　- Dry-Type: Fire-resistant, suitable for commercial complexes (e.g., SCB13 models with F-class insulation ).

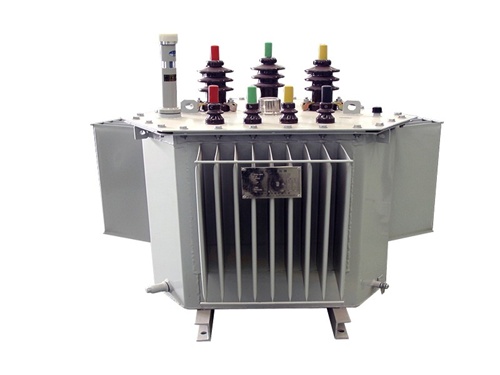

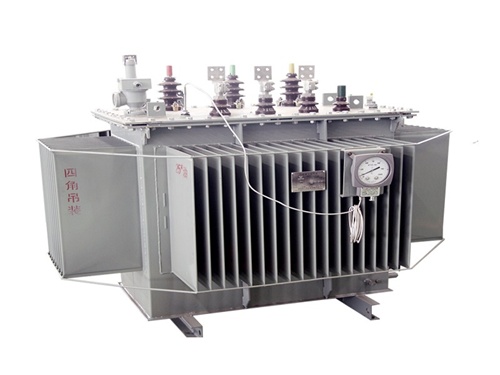

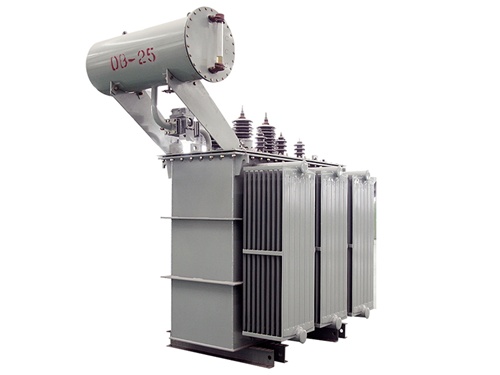

　　- Oil-Immersed: Cost-effective for outdoor use, with R-TEMP oil (燃点 312°C) for safety .

　　3. Intelligent Monitoring

　　- IoT Integration:

　　- Sensors monitor temperature, load, and partial discharge in real time.

　　- Remote control via Modbus or IEC 61850 protocols for voltage regulation and fault diagnosis .

　　- Predictive Maintenance: Cloud-based platforms analyze data to forecast equipment failures, reducing downtime by 30–50% .

　　II. Key Applications

　　1. Urban Power Grids

　　- Residential Areas: Provides stable 10kV/0.4kV power with low noise (<45dB) and compact design .

　　- Commercial Districts: Supports high-load demands in shopping malls and data centers, with Dyn11 winding for harmonic mitigation .

　　2. Renewable Energy

　　- Solar/Wind Farms: Steps up voltage from inverters to grid levels (e.g., 10kV/35kV) while minimizing standby losses. In Inner Mongolia, OEITs reduced wind farm maintenance costs by ¥1 million annually .

　　- Energy Storage Systems: Integrates with batteries for peak shaving and grid stabilization .

　　3. Industrial & Remote Sites

　　- Mining/Offshore Platforms: IP67-rated enclosures withstand harsh environments (salt spray, dust) .

　　- Temporary Construction Sites: Quick deployment (installation within 1 week) for construction equipment power .

　　III. Market Trends & Policy Drivers

　　1. Regulatory Standards

　　- China’s 2025 Mandate: All new transformers must meet Class 2 energy efficiency, pushing SH15 and S22 models as mainstream choices .

　　- International Compliance: IEC 61378 (dry-type) and IEC 62271-202 (high-voltage switchgear) ensure global interoperability.

　　2. Technological Innovation

　　- Smart Grid Integration: OEITs now include edge computing modules for real-time grid optimization .

　　- Green Materials: Biodegradable insulation oils and recyclable enclosure materials align with circular economy goals .

　　3. Market Growth

　　- China’s Market: State Grid’s 2024 procurement reached 14,078 units, with non-crystalline alloy transformers accounting for 42.9% of East China tenders .

　　- Global Outlook: The market is projected to exceed $11.5 billion by 2028, driven by smart city initiatives .

　　IV. Installation & Maintenance

　　1. Site Preparation

　　- Foundation: Concrete base with ≥15-ton load capacity and 1–1.5% slope for drainage .

　　- Grounding: Ring-shaped grounding grid with ≤4Ω resistance, using 40×4mm galvanized flat steel .

　　2. Environmental Adaptation

　　- High Humidity (e.g., Shandong Liaocheng):

　　- Install dehumidifiers to maintain 40–70% RH.

　　- Use -10 transformer oil for winter operation (-15°C) .

　　- Extreme Temperatures:

　　- Summer: Ensure ≥1.5m clearance from walls for airflow.

　　- Winter: Apply heat tracing to prevent oil thickening .

　　3. Maintenance Protocols

　　- Routine Checks: Semi-annual insulation resistance tests (≥100MΩ) and radiator cleaning .

　　- Lifespan: 20–30 years with proper maintenance, supported by 10-year warranties on amorphous alloy cores .

　　V. Cost & ROI Analysis

　　- Initial Investment:

　　- SH15-based OEITs cost ¥110,000–140,000 (1250kVA), 25% higher than S13 models .

　　- Operational Savings:

　　- Annual energy savings of ~4,600 kWh (8760-hour operation) yield ¥3,000–5,000 in cost reductions .

　　- Carbon credits (¥2,000/ton) further offset expenses in carbon-trading regions .

　　- Payback Period: Typically 3–5 years, shorter in high-load scenarios .

　VI. Competitive Landscape

　　VII. Future Directions

　　- Ultra-High Voltage: 110kV OEITs are being tested for rural grid upgrades .

　　- AI-Driven Optimization: Machine learning algorithms predict load patterns to adjust transformer tap changers automatically .

　　- Multi-Energy Integration: Combining with EV chargers and microgrids for distributed energy systems .

　　Conclusion: The Outdoor Enclosed Integrated Transformer represents a pivotal advancement in modern power distribution, offering energy efficiency, scalability, and smart grid compatibility. Its adoption is accelerated by policy mandates, technological innovation, and the need for resilient infrastructure. When selecting an OEIT, prioritize load profile analysis, environmental conditions, and manufacturer expertise to maximize long-term value.
