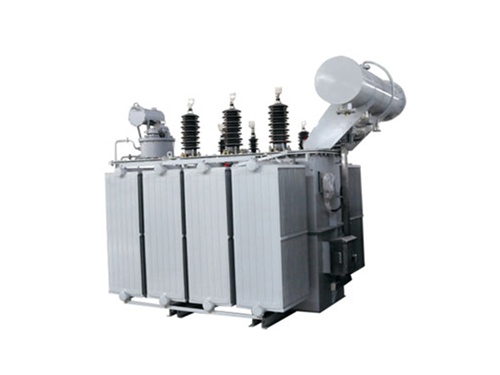

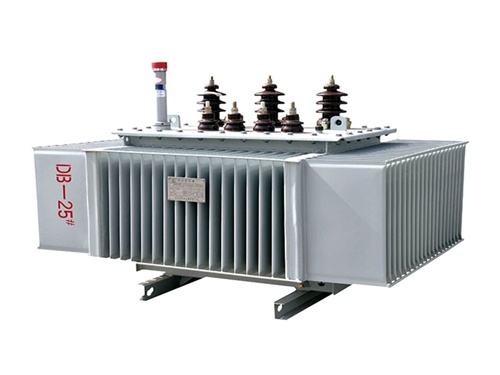

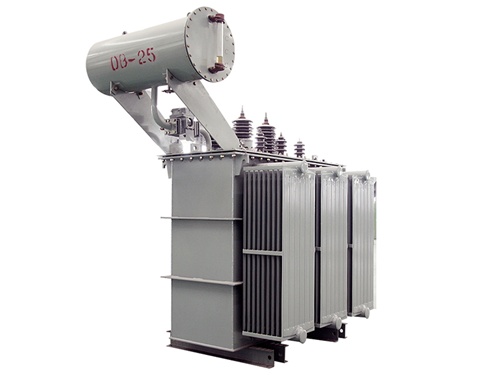

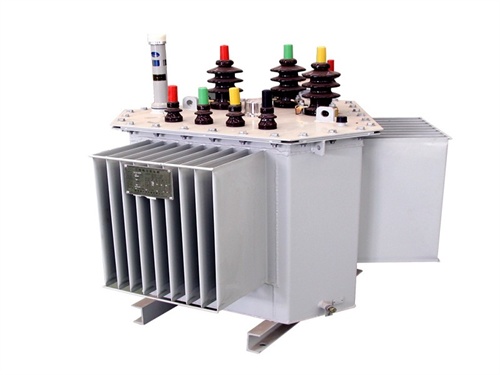

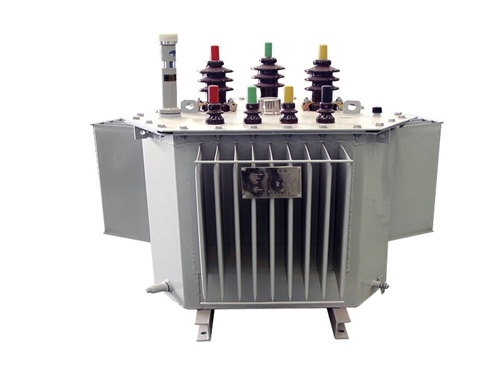

Dimensions of oil-immersed transformer

　　The dimensions of oil-immersed transformers vary with different capacities. The common capacities and their corresponding dimensions are as follows:

　30kVA: Outer dimensions are 980mm × 660mm × 1020mm, with a rail gauge of 400mm × 400mm.

　　50kVA: Outer dimensions are 1100mm × 710mm × 1100mm, with a rail gauge of 400mm × 450mm.

　　63kVA: Outer dimensions are 1130mm × 685mm × 1160mm, with a rail gauge of 400mm × 450mm.

　　80kVA: Outer dimensions are 1090mm × 710mm × 1100mm, with a rail gauge of 400mm × 550mm.

　　100kVA: Outer dimensions are 1100mm × 730mm × 1230mm, with a rail gauge of 400mm × 550mm.

　　125kVA: Outer dimensions are 1240mm × 750mm × 1250mm, with a rail gauge of 550mm × 550mm.

　　160kVA: Outer dimensions are 1190mm × 790mm × 1150mm, with a rail gauge of 550mm × 550mm.

　　200kVA: Outer dimensions are 1250mm × 830mm × 1200mm, with a rail gauge of 550mm × 650mm.

　　250kVA: Outer dimensions are 1320mm × 865mm × 1280mm, with a rail gauge of 550mm × 650mm.

　　315kVA: Outer dimensions are 1350mm × 900mm × 1380mm, with a platform size of 1.0m × 1.0m and a rail gauge of 550mm × 750mm.

　　400kVA: Outer dimensions are 1450mm × 970mm × 1350mm.

　　500kVA: Outer dimensions are 1505mm × 1005mm × 1450mm, with a platform size of 1.2m × 1.2m and a rail gauge of 660mm × 750mm.

　　630kVA: Outer dimensions are 1675mm × 1095mm × 1515mm, with a platform size of 1.2m × 1.2m and a rail gauge of 660mm × 850mm.

　　800kVA: Outer dimensions are 1755mm × 1145mm × 1560mm, with a platform size of 1.2m × 1.2m and a rail gauge that may be 820mm or 660mm.

　　1000kVA: Outer dimensions are 1865mm × 1295mm × 1650mm, with a rail gauge of 820mm × 850mm.

　　1250kVA: Outer dimensions are 865mm × 1295mm × 1650mm (some data may vary, and actual product specifications should be referred to), with a rail gauge of 820mm × 850mm.

　　1600kVA: Taking the S11-1600/10 model as an example, the outer dimensions are 1780mm × 1290mm × 1640mm.

　　2000kVA: Taking the S11-2000/10 model as an example, the outer dimensions are 1850mm × 1310mm × 1650mm.

　　2500kVA: Taking the S11-2500/10 model as an example, the outer dimensions are 1910mm × 1880mm × 1750mm.
