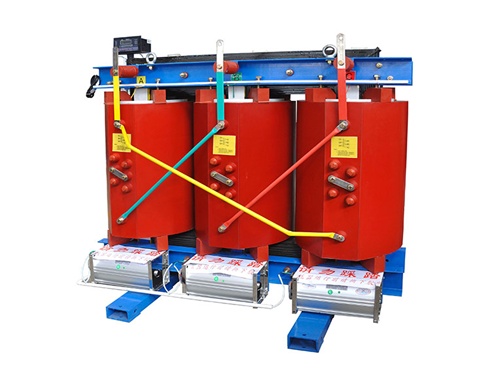

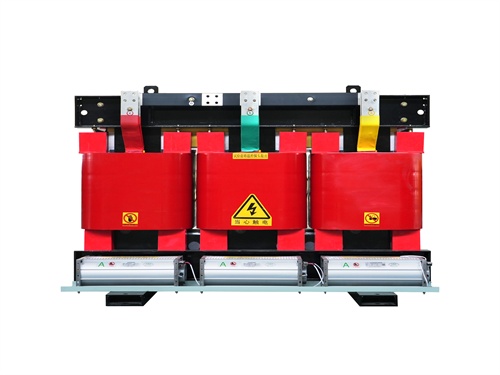

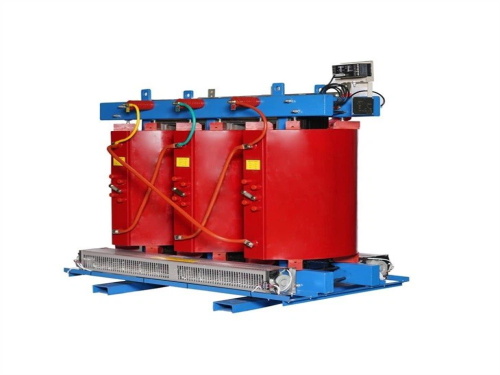

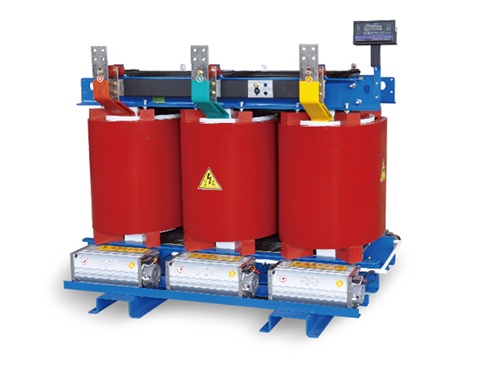

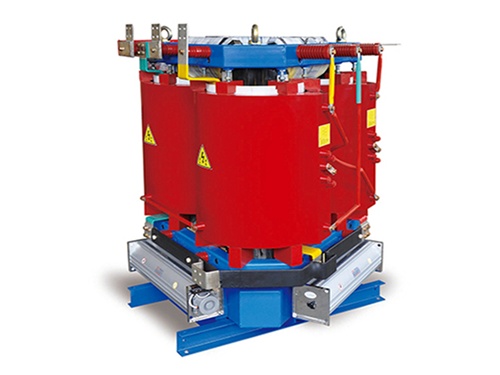

Dry-type power transformers

　　Drytype power transformers are critical components in electrical distribution systems, renowned for their safety, low maintenance, and environmental sustainability. Unlike oilfilled transformers, they use air or solid insulation materials (e.g., epoxy resin) instead of liquid coolant, making them ideal for applications where fire risk, space constraints, or environmental impact are primary concerns. Here’s a detailed overview:

　　1. Construction and Design

　　Core and Windings: Typically constructed with silicon steel cores for low hysteresis losses and copper or aluminum windings. Highvoltage windings are often encapsulated in epoxy resin to enhance mechanical strength, electrical insulation, and resistance to moisture and contaminants .

　　Cooling Methods:

　　Natural Air Cooling (AN): Reliant on ambient air circulation for continuous operation at rated capacity.

　　Forced Air Cooling (AF): Utilizes fans to increase airflow, allowing temporary overloads (e.g., +50% capacity) for emergency or intermittent use .

　　Hybrid Systems: Innovations like Hitachi Energy’s *CompactCool™* combine solid insulation with direct liquid cooling (e.g., dielectric fluid) inside the coils, reducing size by up to 50% while maintaining drytype safety .

　　2. Ratings and Performance

　　Voltage and Power:

　　Standard ratings: Up to 36 kV (primary) and 20 MVA. Specialized models (e.g., Hitachi Energy’s HiDry) can reach 72.5 kV and 63 MVA for highpower applications .

　　Efficiency: Typically 98–99% at 35% load, meeting strict regulatory standards (e.g., US DOE Tier 2 or CEE Tier 2) . Newer designs with nanocomposite materials further reduce losses.

　　Thermal Classes: Commonly rated for Class F (155°C) or H (180°C) insulation, ensuring reliable operation in hightemperature environments .

　　3. Advantages

　　Safety: Nonflammable, selfextinguishing epoxy resin eliminates fire hazards, making them suitable for hospitals, data centers, and urban buildings .

　　Low Maintenance: No oil to leak or replace; routine maintenance involves dusting and connection checks, reducing labor costs by 50% compared to oilfilled units .

　　Environmental Friendliness: Free of toxic fluids, aligning with sustainability goals and avoiding soil/water contamination risks .

　　Space Efficiency: Compact design allows installation near load centers, reducing cabling costs and infrastructure requirements .

　　4. Disadvantages

　　Cost: Higher upfront cost (20–30% more than oilfilled transformers), though lifecycle savings in maintenance and energy offset this within 2–3 years .

　　Cooling Limitations: Lower heat dissipation capacity restricts continuous overload capability compared to oilfilled units .

　　Voltage/Power Limits: Generally unsuitable for extrahighvoltage (EHV) transmission (typically ≤36 kV) .

　　5. Applications

　　Commercial/Residential: Shopping malls, hospitals, and highrise buildings where fire safety is paramount .

　　Industrial: Factories, offshore platforms, and mining operations requiring explosionproof or corrosionresistant solutions .

　　Renewable Energy: Integrating solar/wind power into grids, including transformer stations in wind towers .

　　Transportation: Railway systems, electric vehicle charging stations, and marine applications (e.g., ships) .

　　6. Standards and Compliance

　　IEC 6007611: Defines safety, performance, and testing requirements for drytype transformers, including partial discharge limits (<10 pC) .

　　IEEE C57.12.51: Specifies ventilated drytype transformers ≥501 kVA, covering shortcircuit withstand and thermal endurance .

　　Regional Regulations:

　　US DOE: Mandates minimum efficiency levels (e.g., ≥99% for 1000 kVA units) effective through 2029 .

　　CEE (Europe): Sets Tier 2 efficiency criteria for lowvoltage transformers (e.g., 99.59% for 1000 kVA) .

　　7. Maintenance and Installation

　　Routine Checks: Weekly visual inspections, monthly insulation resistance tests, and annual comprehensive maintenance (e.g., core/winding checks) .

　　Enclosures: Available in NEMA 1 (indoor), NEMA 3R (outdoor), or explosionproof designs for hazardous environments .

　　Smart Monitoring: Integration with IoT sensors for realtime temperature and load monitoring, enabling predictive maintenance .

　　8. Innovations

　　Nanocomposite Insulation: Enhances thermal stability and reduces partial discharge, extending lifespan in harsh conditions .

　　Digital Twin Technology: Simulates performance to optimize operation and detect faults proactively .

　　3D Printing: Prototyping custom components for rapid deployment in niche applications .

　　Conclusion

　　Drytype transformers are a cornerstone of modern power distribution, balancing safety, efficiency, and sustainability. While their initial cost and cooling limitations may deter some, their reliability, environmental benefits, and lifecycle savings make them indispensable in applications where risk mitigation and compact design are critical. As technology advances, hybrid cooling systems and smart monitoring further solidify their role in the transition to a greener, smarter grid.
