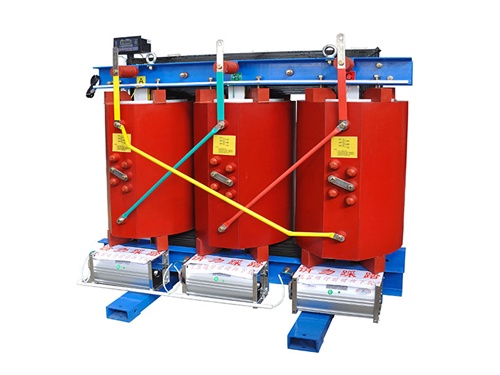

The construction of a dry-type transformer mainly consists of four core components: iron core, winding, insulation system, and cooling & structural parts, with the insulation system designed for air cooling (no insulating oil) as its most distinctive feature.

　　1. Core: Magnetic Circuit Core

　　The core is the path for magnetic flux and the foundation of the transformer’s electromagnetic conversion.

　　Material: High-quality cold-rolled silicon steel sheets (usually 0.3mm or 0.35mm thick). These sheets have low magnetic hysteresis loss, which reduces core loss during operation.

　　Structure: Stacked from silicon steel sheets cut into "E" and "I" shapes (or "Step-Lap" stepped shapes). The sheets are coated with an insulating film to prevent eddy current loss between layers.

　　Key Requirement: Tightly clamped with steel plates and bolts to ensure structural stability, avoid vibration noise, and maintain the integrity of the magnetic circuit.

　　2. Winding: Electrical Circuit Core

　　The winding is the conductor that carries current and realizes voltage transformation, divided into high-voltage and low-voltage windings.

　　Conductor Material: Copper wires (most common, with low resistivity and good heat resistance) or aluminum wires (cost-effective, used in some medium-and-low-capacity transformers).

　　Winding Form:

　　Layer winding: Conductors are wound in layers along the core column, suitable for low-voltage, large-current windings (e.g., low-voltage windings of distribution transformers).

　　Disc winding: Conductors are wound into circular discs, then stacked and connected in series, suitable for high-voltage, small-current windings (e.g., high-voltage windings of power transformers).

　　Insulation Treatment: Windings are wrapped with insulating materials (such as glass fiber tape, insulating paper) between turns and layers to prevent short circuits.

　　3. Insulation System: Core Guarantee for Dry Operation

　　Since dry-type transformers use air as the cooling medium (instead of insulating oil), the insulation system must be highly reliable to resist moisture, dust, and partial discharge.

　　Main Insulation: Insulates between high-voltage winding and low-voltage winding, and between windings and iron core. It usually uses glass fiber reinforced plastic (FRP) partitions or insulating paper tubes.

　　Turn-to-Turn/Layer-to-Layer Insulation: Insulates between adjacent turns or layers of the winding, using thin insulating paper (e.g., aramid paper) or enameled wire insulation (for small-capacity transformers).

　　Insulation Class: Classified by heat resistance, common grades include F-class (maximum allowable temperature 155°C) and H-class (maximum allowable temperature 180°C), which determine the transformer’s long-term operating temperature limit.

　　4. Cooling & Structural Parts: Operation Support

　　These parts ensure the transformer operates stably, safely, and with low noise.

　　Cooling System:

　　Natural air cooling (AN): Relies on natural convection of air to dissipate heat, suitable for small-capacity transformers (usually ≤1000kVA).

　　Forced air cooling (AF): Equipped with axial fans to blow air through the winding and core, increasing heat dissipation capacity by 30%-50%, suitable for medium-and-large-capacity transformers.

　　Structural Parts:

　　Frame: Made of steel, used to fix the iron core, windings, and other components, ensuring overall structural strength.

　　Terminal Box: Installed on the side of the transformer, with high-voltage and low-voltage terminals inside for external cable connection, and equipped with insulating bushings to prevent electric leakage.

　　Protection Cover: A metal or non-metallic shell that protects internal components from dust, moisture, and external impact; some covers have ventilation holes to facilitate air circulation.

　　Temperature Monitoring Device: Equipped with temperature sensors (e.g., PT100) to monitor the winding or core temperature in real time, and trigger alarms or trips when the temperature exceeds the limit.
