Cooling Methods for Dry-Type Transformers

　　Dry-type transformers are widely used in power distribution systems due to their oil-free, fire-resistant, explosion-proof, and low-maintenance advantages. The cooling method directly affects the transformer's heat dissipation efficiency, operating temperature, and service life. Below are the common cooling methods for dry-type transformers:

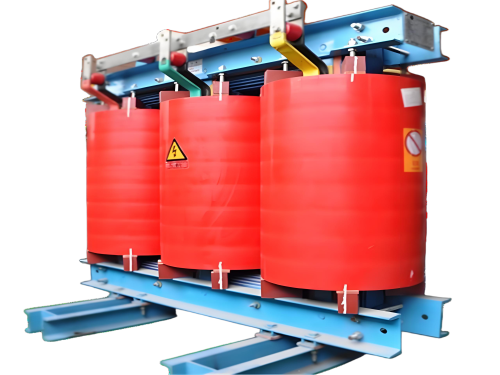

　　Natural Air Cooling (AN)

　　Principle: Relies on natural convection and radiation of the surrounding air to dissipate heat, without the need for additional auxiliary equipment.

　　Characteristics:

　　Simple structure, low cost, and reliable operation.

　　Suitable for transformers with small capacity and low load rates.

　　Lower heat dissipation efficiency, resulting in higher temperature rise of the transformer, which limits its capacity and overload capability.

　　Application Scenarios: Indoor power distribution rooms and locations with low noise requirements.

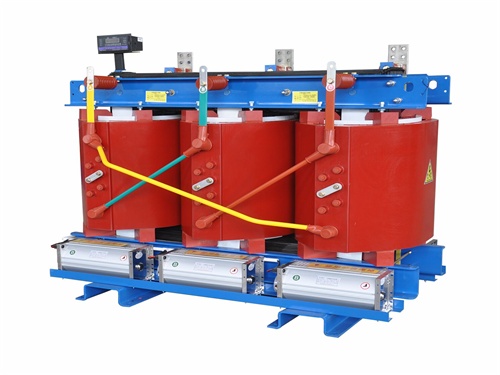

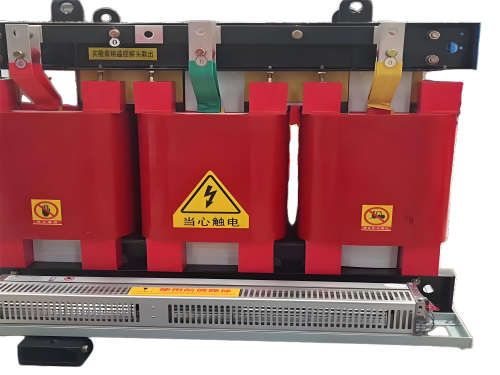

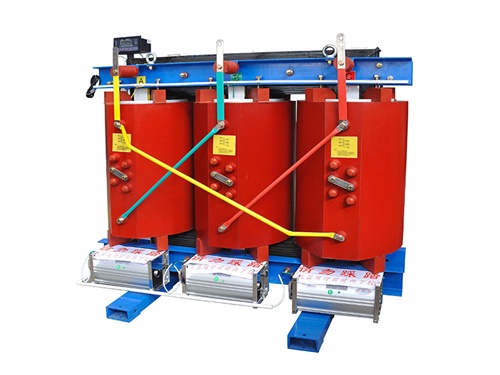

　　Forced Air Cooling (AF)

　　Principle: Enhances heat dissipation efficiency by adding fans to force air movement, based on natural air cooling.

　　Characteristics:

　　Significantly improves heat dissipation efficiency, allowing the transformer capacity to be increased by 30%-50%.

　　Fan operation generates a certain level of noise, requiring noise reduction measures.

　　In case of fan failure, the transformer needs to be derated for operation.

　　Application Scenarios: Transformers with large capacity and high load rates, or locations with strict temperature rise requirements.

　　Hybrid Cooling (AN/AF)

　　Principle: Combines natural cooling and forced cooling methods, with the transformer using natural cooling under light load and activating fans under heavy load.

　　Characteristics:

　　Balances the reliability of natural cooling and the efficiency of forced cooling.

　　Automatically switches cooling methods based on load conditions, offering significant energy-saving effects.

　　Requires fan control devices, increasing system complexity.

　　Application Scenarios: Locations with significant load fluctuations, such as commercial buildings and industrial plants.

　　Water Cooling (Rare, Special Applications)

　　Principle: Removes heat generated by the transformer through a water circulation system.

　　Characteristics:

　　Extremely high heat dissipation efficiency, suitable for transformers with ultra-large capacity or in special environments.

　　Complex system requiring water cooling equipment and water treatment systems, with high costs.

　　Risk of water leakage, necessitating strict sealing and monitoring.

　　Application Scenarios: Special industrial environments or transformers with ultra-large capacity.

　　Heat Pipe Cooling (New Technology)

　　Principle: Utilizes the high-efficiency heat transfer characteristics of heat pipes to transfer heat from the transformer to heat sinks or cooling media.

　　Characteristics:

　　High heat dissipation efficiency and noise-free operation, suitable for noise-sensitive locations.

　　Relatively low maturity of heat pipe technology, with high costs.

　　Application Scenarios: Data centers, hospitals, and other locations with extremely high requirements for noise and temperature rise.

　　Recommendations for Cooling Method Selection

　　Capacity and Load Rate: Prioritize natural cooling for transformers with small capacity and low load rates; recommend forced cooling or hybrid cooling for transformers with large capacity and high load rates.

　　Environmental Requirements: Choose natural cooling or heat pipe cooling for noise-sensitive locations (such as hospitals and schools); select forced cooling or hybrid cooling for locations with strict temperature rise requirements.

　　Economy: Natural cooling has the lowest cost, while forced cooling and hybrid cooling have higher costs but can increase transformer capacity and lifespan.

　　Maintainability: Natural cooling requires the simplest maintenance, while forced cooling requires regular fan maintenance, and water cooling and heat pipe cooling have more complex maintenance requirements.

　　Summary

　　The cooling method of a dry-type transformer directly affects its performance and operational reliability. Selecting an appropriate cooling method based on the transformer's capacity, load rate, environmental requirements, and economy is crucial for ensuring safe and efficient operation. In practical applications, hybrid cooling (AN/AF) has become a common choice due to its flexibility and energy-saving benefits.
