SCB18-800KVA dry-type transformer

　　Technical Analysis and Application Prospects of SCB18-800KVA Dry-Type Transformers

　　1. Technical Overview

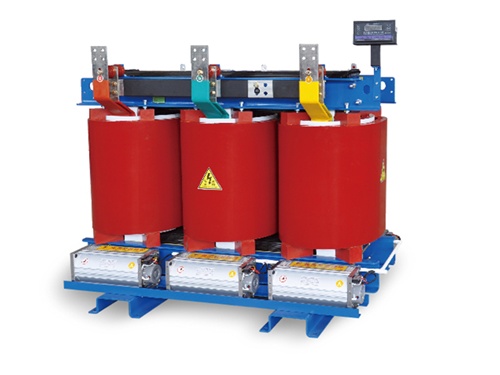

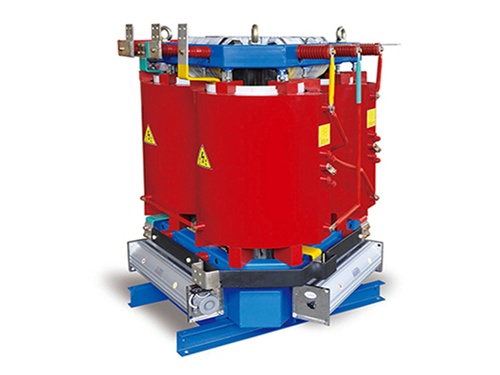

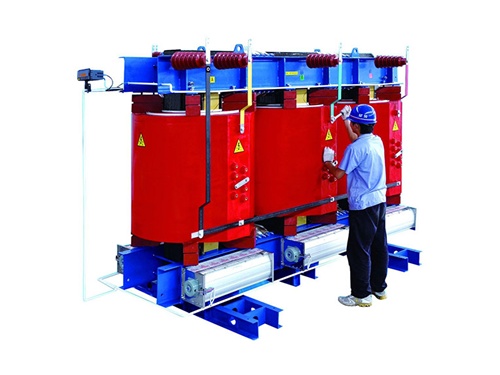

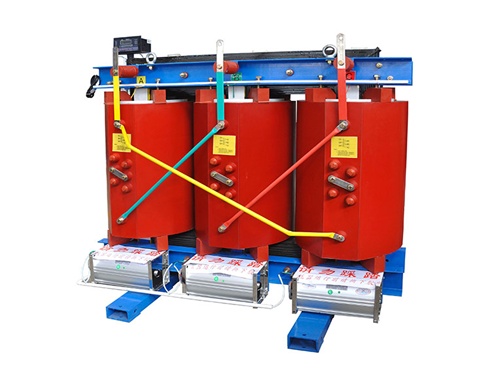

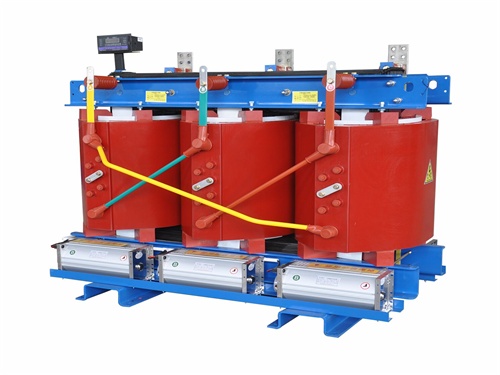

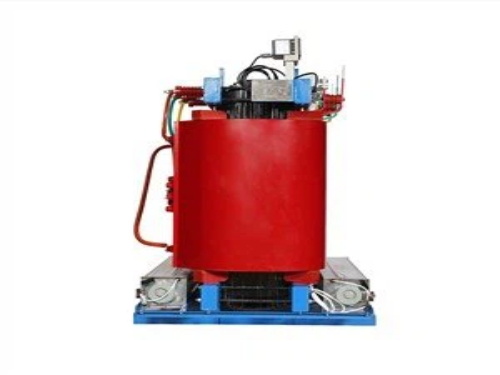

　　The SCB18-800KVA dry-type transformer is a three-phase epoxy resin-cast dry-type transformer compliant with China's Tier 1 energy efficiency standard (GB20052-2020). With a rated capacity of 800KVA and a voltage rating of 10kV/0.4kV, its model designation "SCB" signifies a three-phase, resin-insulated dry-type transformer, while "18" denotes its next-generation, low-loss technology. This product is widely applied in urban power grids, industrial distribution, commercial buildings, and renewable energy sectors, leveraging high efficiency, energy savings, safety, and reliability as its core strengths.

　　2. Core Technical Parameters and Performance Advantages

　　2.1 Efficient and Energy-Saving Design

　　No-Load and Load Losses: The SCB18-800KVA achieves no-load losses of only 875W and load losses of 6265W (under AF forced-air cooling conditions), representing reductions of 30% and 10%, respectively, compared to traditional SCB12 transformers. Based on an annual operation of 8,000 hours, annual energy savings exceed 7,500 kWh, enabling cost recovery through electricity savings within 3–5 years.

　　Energy Efficiency Class: Meets China's Tier 1 energy efficiency standard, making it suitable for energy-intensive applications (e.g., green buildings, data centers).

　　2.2 Structural and Material Innovations

　　Core Material: Utilizes high-quality cold-rolled grain-oriented silicon steel with a fully stepped lap joint structure, reducing no-load current and core noise.

　　Winding Technology: High-voltage windings employ epoxy resin vacuum casting, with partial discharge ≤5PC to enhance insulation performance. Low-voltage windings adopt a foil structure, addressing axial spiral angle issues and improving ampere-turn balance.

　　Cooling Methods: Supports natural cooling (AN) or forced-air cooling (AF) modes, enabling overloading to 140% of rated capacity under AF, accommodating short-term high-load demands.

　　2.3 Safety and Reliability

　　Protection Class: The enclosure achieves an IP21 rating, effectively resisting dust and water ingress for indoor installations.

　　Temperature Control System: Equipped with an intelligent temperature controller (e.g., Pt100 sensors) for real-time winding temperature monitoring, featuring fault alarms, over-temperature tripping, and remote monitoring via RS485 interface.

　　Mechanical Strength: Coils are reinforced with glass fiber mesh boards on inner and outer walls, significantly enhancing resistance to sudden short circuits.

　　2.4 Environmental Adaptability

　　Temperature Rise Control: Maintains an average winding temperature rise ≤100K, suitable for high-altitude (≤3,000m) and high-temperature (≤45°C) environments.

　　Moisture Resistance: Sealed enclosure design combined with Class F insulation materials ensures operation in humid conditions (e.g., basement power distribution rooms).

　3. Application Scenarios

　　3.1 Power Systems

　　Urban Grid Upgrades: Serves as a distribution transformer installed directly at load centers (e.g., residential complexes, commercial malls) to reduce line losses.

　　Renewable Energy Integration: When paired with SCB18-800KVA transformers in wind and solar farms, transmission losses are minimized, improving renewable energy utilization.

　　3.2 Industrial Sectors

　　Energy-Intensive Industries: Ideal for medium-voltage distribution systems in metallurgy, petrochemicals, and other sectors, where energy efficiency significantly reduces operational costs.

　　Special Environments: Fully sealed structure ensures stable operation in dusty or corrosive environments (e.g., mines, ports).

　　3.3 Commercial and Residential Buildings

　　Green Buildings: Compliant with LEED or China's green building standards, it is used as an energy-efficient power distribution device in shopping centers, hotels, hospitals, etc.

　　Underground Power Distribution Rooms: Compact design (dimensions vary by manufacturer) and low noise (≤64dB) make it suitable for space-constrained basement installations.

　　3.4 Temporary and Emergency Power Supply

　　Construction Sites: Integrated into prefabricated substations for rapid temporary grid setup.

　　Disaster Relief: Paired with generator sets to provide emergency power to disaster-stricken areas.

　　4. Market and Policy Drivers

　　4.1 Growing Market Demand

　　Grid Modernization: China's "14th Five-Year Plan" drives intelligent grid upgrades, with an estimated annual demand exceeding 100,000 dry-type transformers.

　　Renewable Energy Growth: Increasing installed capacity of wind and solar power drives demand for supporting transformers.

　　4.2 Policy Support

　　Energy Efficiency Standards: Mandatory implementation of GB20052-2020 in China phases out inefficient transformers, making the SCB18 series a主流替代产品 (mainstream alternative).

　　Green Procurement: Government projects prioritize Tier 1 energy-efficient equipment, accelerating market transition toward high-efficiency solutions.

　　4.3 Competitive Landscape

　　Domestic Manufacturers: Firms like Jiangsu Juli and Zhejiang Fujie dominate through technological innovation and cost advantages.

　　International Brands: ABB, Siemens, and others compete in the premium market segment with advanced products.

　　5. Technological Development Trends

　　5.1 Material Upgrades

　　Nanocrystalline Cores: Research into higher-saturation magnetic flux density nanocrystalline materials to further reduce no-load losses.

　　Eco-Friendly Insulating Media: Exploration of natural ester oils as alternatives to epoxy resin to reduce production carbon emissions.

　　5.2 Intelligent Integration

　　IoT Convergence: Built-in 5G/NB-IoT modules enable real-time device status uploads and predictive maintenance.

　　Energy Management Systems: Integration of power quality monitoring and reactive power compensation functions to enhance overall distribution system efficiency.

　　5.3 Modular Design

　　Prefabricated Substations: Integration of transformers, switchgear, and other equipment into standardized containers, shortening delivery cycles to within 2 weeks.

　　High-Voltage Expansion: Development of 35kV and above voltage-class products to meet ultra-high-voltage transmission needs.

　　6. Conclusion

　　The SCB18-800KVA dry-type transformer has emerged as a benchmark product in the medium-voltage distribution sector, leveraging Tier 1 energy efficiency, high reliability, and smart potential. With the advancement of China's "dual carbon" goals and the construction of new power systems, its market demand will continue to expand. In the future, through material innovation, digital upgrades, and modular design, this product will further penetrate extreme environments (e.g., deep sea, polar regions) and emerging fields (e.g., EV charging stations, data centers), providing critical support for global energy transition initiatives.
