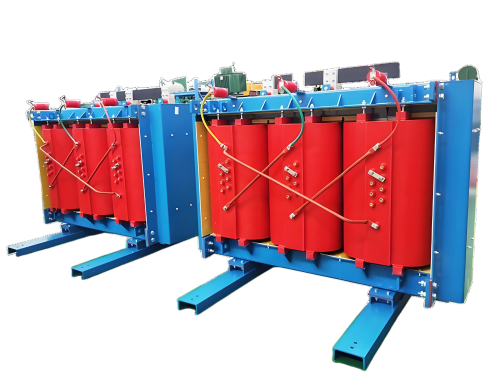

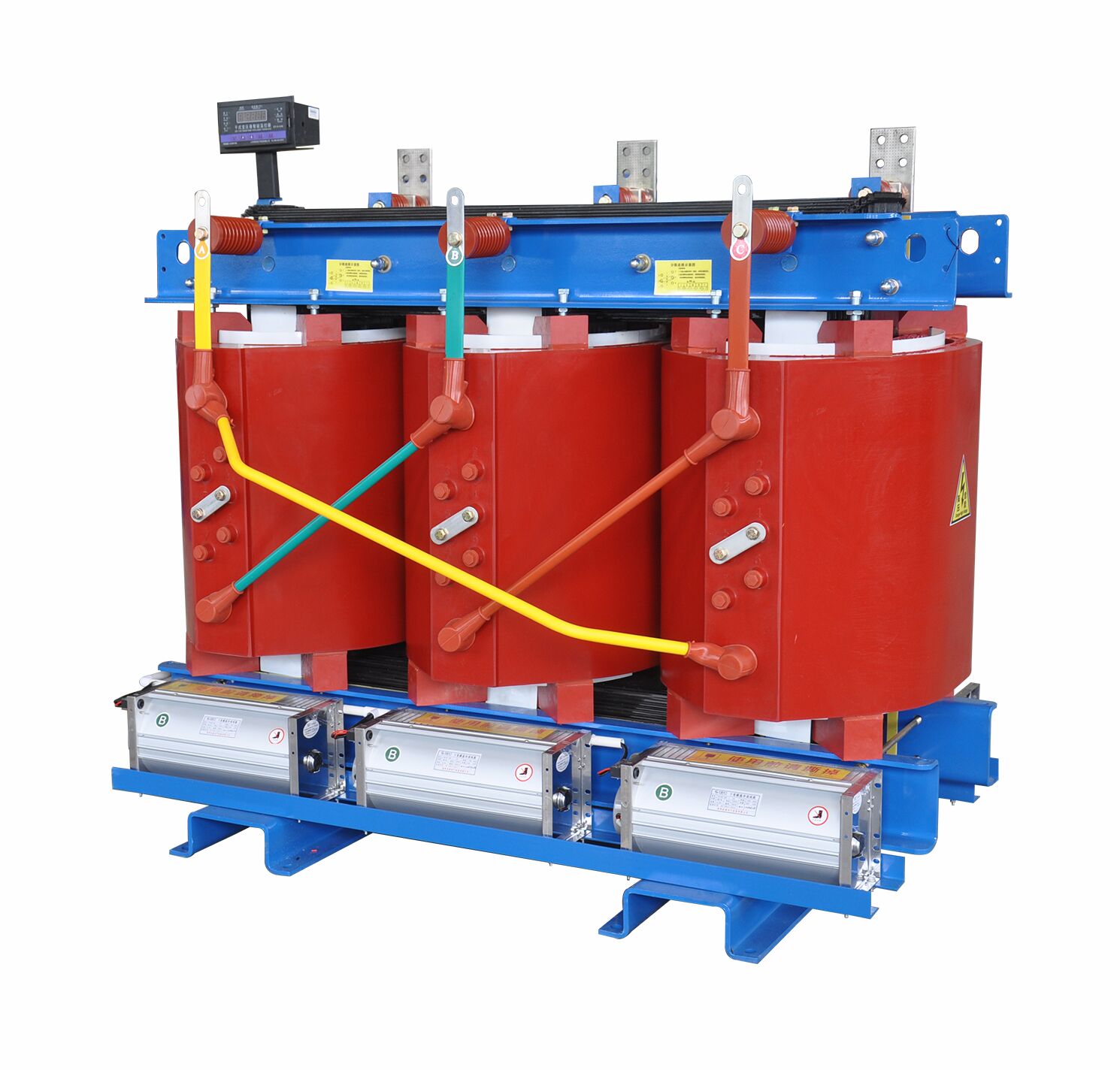

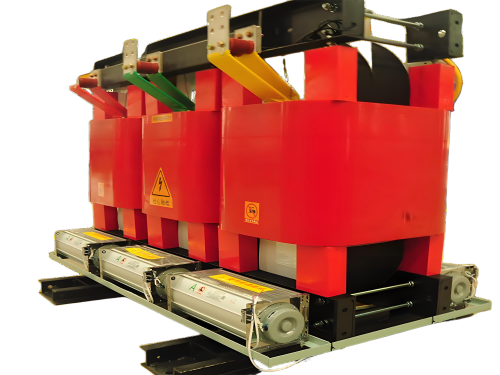

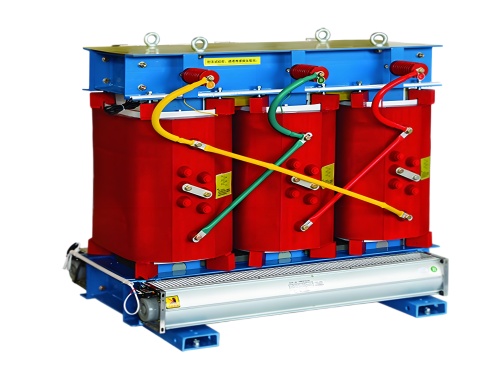

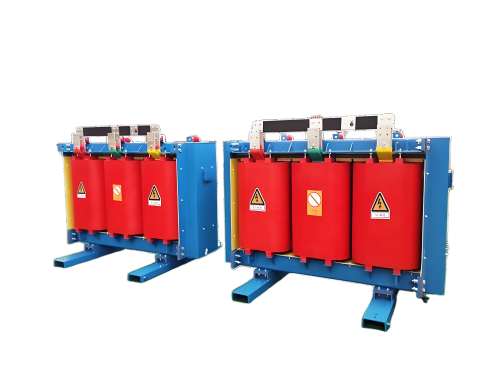

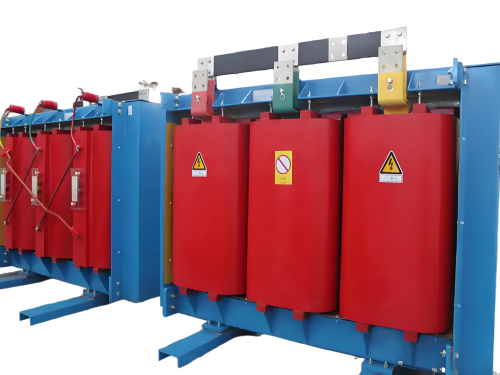

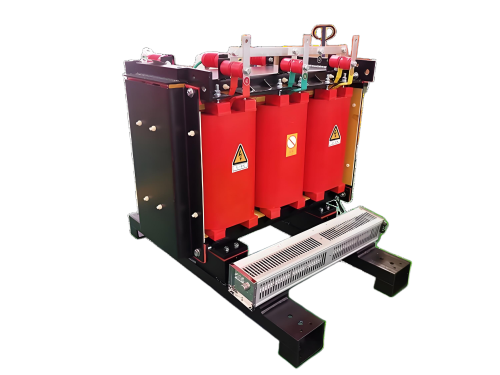

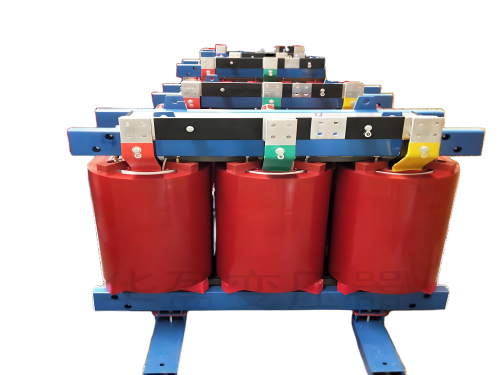

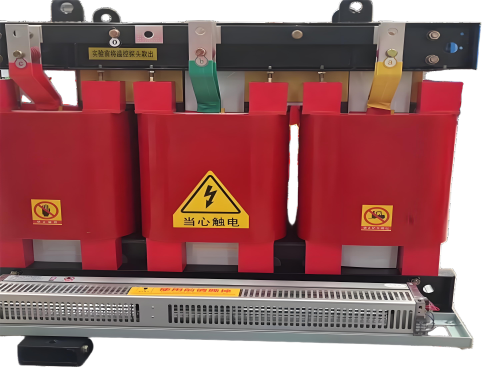

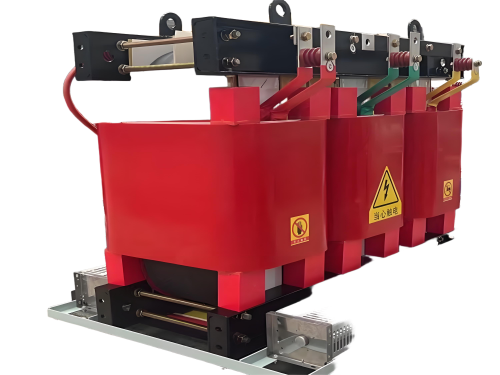

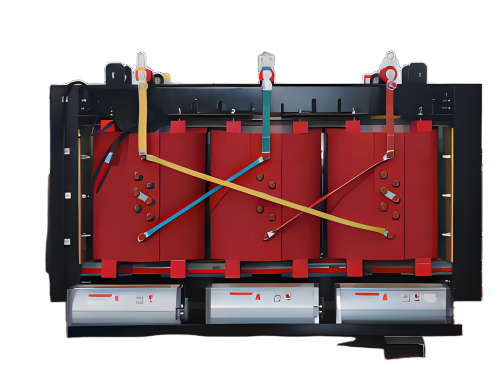

1000KVA amorphous alloy dry-type transformer

　　Overview of 1000KVA Amorphous Alloy Dry-Type Transformer

　　The 1000KVA amorphous alloy dry-type transformer is a type of dry-type power transformer that utilizes amorphous alloy material for its iron core, with a rated capacity of 1000 kilovolt-amperes (KVA). Amorphous alloy materials exhibit excellent magnetic properties and low-loss characteristics, enabling this transformer to excel in energy conservation, environmental protection, and high efficiency.

　　Key Parameters and Performance Characteristics

　　Rated Capacity

　　The 1000KVA rating indicates the apparent power that the transformer can continuously output under rated conditions. This capacity is sufficient to meet the power demands of large-scale electrical loads, making it suitable for applications in industrial plants, commercial buildings, data centers, and other settings.

　　Iron Core Material

　　The amorphous alloy iron core is the core component of the amorphous alloy dry-type transformer. Compared to traditional silicon steel sheet iron cores, it offers the following advantages:

　　Low Losses: The hysteresis loss and eddy current loss of amorphous alloy materials are significantly lower than those of silicon steel sheets, resulting in less heat generation during transformer operation and higher efficiency.

　　High Permeability: Amorphous alloy materials possess high magnetic permeability, which reduces the magnetizing current of the transformer and improves the power factor.

　　Energy Conservation and Environmental Protection: Due to their low losses, amorphous alloy transformers can save a substantial amount of electrical energy during operation, reduce carbon emissions, and align with the principles of green and sustainable development.

　　Insulation and Protection Classes

　　Insulation Class: Typically, materials with an H-class or higher insulation class are used to ensure stable operation of the transformer under high-temperature conditions.

　　Protection Class: The dry-type design eliminates the need for oil immersion, thereby avoiding oil pollution and fire risks. Additionally, the enclosure protection class can reach IP20 or higher, effectively preventing the ingress of dust and foreign objects.

　　Efficiency and Losses

　　High Efficiency: The efficiency of a 1000KVA amorphous alloy dry-type transformer typically exceeds 98%, significantly higher than that of traditional transformers.

　　Low Losses: Both no-load losses and load losses are significantly lower than those of traditional transformers, contributing to reduced operating costs.

　　Overload Capacity

　　Amorphous alloy dry-type transformers possess a certain overload capacity, enabling them to withstand a certain percentage of overload for a short period without damage. However, prolonged overload can lead to an increase in transformer temperature and affect its service life, so it should be avoided as much as possible.

　　Application Scenarios

　　The 1000KVA amorphous alloy dry-type transformer is widely applied in the following scenarios:

　　Industrial Sector: Such as production workshops and distribution rooms in the steel, chemical, and textile industries.

　　Commercial Buildings: Such as power distribution systems in shopping malls, office buildings, and hotels.

　　Data Centers: To provide stable and reliable power supply for servers, storage devices, etc.

　　Renewable Energy Sector: As supporting transformers for renewable energy generation projects such as wind farms and photovoltaic power stations.

　　Advantage Analysis

　　Energy Conservation and Cost Reduction: The low-loss characteristic of the amorphous alloy iron core enables the transformer to save a significant amount of electrical energy during operation, thereby reducing operating costs.

　　Environmental Protection and Safety: The dry-type design avoids oil pollution and fire risks, meeting environmental and safety requirements.

　　High Efficiency and Stability: High efficiency and stable performance ensure the reliability and continuity of power supply.

　　Simple Maintenance: Dry-type transformers do not require regular oil changes and maintenance, reducing maintenance workload and costs.

　　Selection and Usage Precautions

　　Selection

　　Load Requirements: Choose an appropriate rated capacity based on actual load requirements to avoid waste or inadequacy caused by selecting a capacity that is too large or too small.

　　Voltage Levels: Select suitable input and output voltage levels based on the voltage levels of the power supply system and electrical equipment.

　　Environmental Conditions: Consider factors such as temperature, humidity, and altitude in the usage environment, and choose a transformer with the corresponding protection class and insulation class.

　　Usage Precautions

　　Installation Location: Select a well-ventilated, dry, and dust-free installation location, avoiding direct sunlight and rain exposure.

　　Correct Wiring: Follow the transformer's wiring diagram to ensure correct and secure wiring.

　　Operation Monitoring: Regularly monitor parameters such as the transformer's operating temperature, voltage, and current to promptly detect and handle abnormal situations.

　　Maintenance and Care: Regularly clean the transformer's surface and heat sinks, and check for loose fasteners to ensure the normal operation of the transformer.
