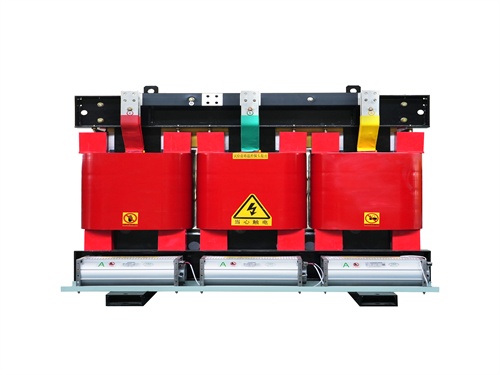

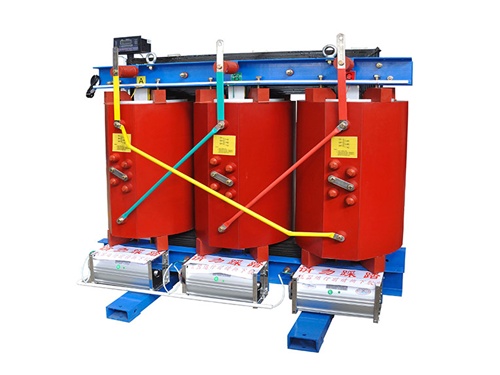

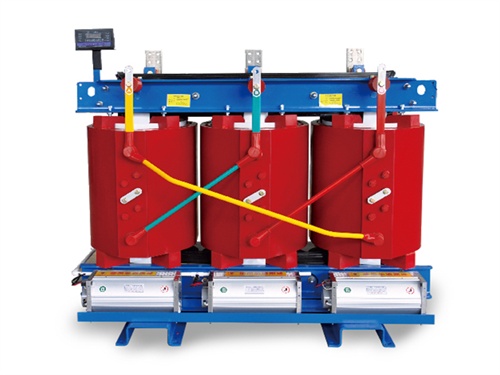

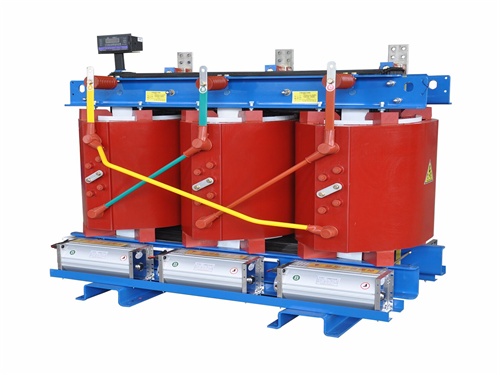

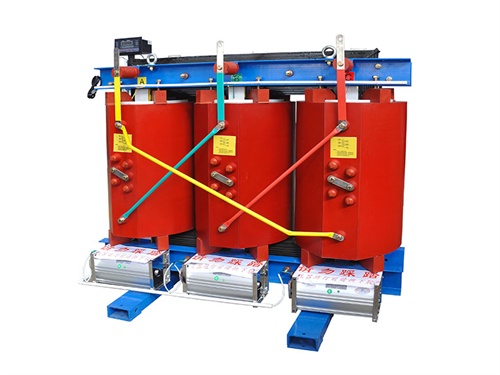

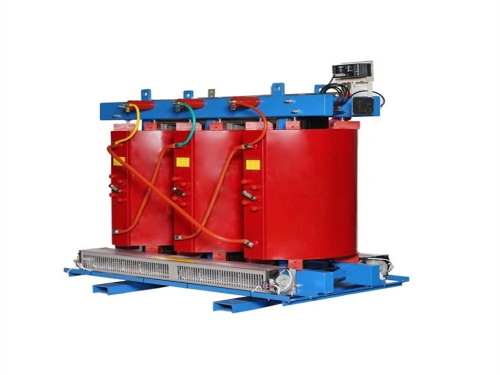

SCB14-1600KVA dry-type transformer

　　The SCB14-1600KVA dry-type transformer is a highly efficient, energy-saving power transformer suitable for a variety of applications. Below is a detailed summary:

　I. Basic Parameters

　　Model: SCB14-1600KVA

　　Rated Capacity: 1600kVA

　　Voltage Levels: High-voltage side typically 10kV (±2×2.5% off-load tap changer), low-voltage side 0.4kV

　　Frequency: 50Hz

　　Cooling Method: Natural air cooling (AN) or forced air cooling (AF)

　　Insulation Class: Class F or above

　　Protection Class: IP20 or above (customizable to higher levels such as IP23 as needed)

　　Noise Level: Below 60dB(A)

　　II. Technical Features

　　High Efficiency and Energy Savings: The SCB14-1600KVA dry-type transformer employs high-quality silicon steel sheets and full copper winding materials, featuring low losses and high efficiency. Its no-load losses and load losses are significantly reduced, making it more energy-efficient compared to traditional models. For example, its no-load loss is ≤1700W (complying with GB20052-2020 Energy Efficiency Class 1), and its load loss is ≤11500W (under 120℃ conditions).

　　Safe and Reliable: The dry-type design eliminates the fire hazards associated with oil-immersed transformers while enhancing operational safety. Its robust structure and high protection class effectively prevent interference and damage from external factors.

　　Environmentally Friendly: The oil-free design reduces the risk of environmental pollution and also lowers maintenance costs. Additionally, its low-noise design makes it suitable for environments with strict noise requirements.

　　High Adaptability: It can operate stably under various environmental conditions, including high temperatures and humidity. Furthermore, parameters such as short-circuit impedance and connection group can be customized according to user needs.

　III. Application Scenarios

　　The SCB14-1600KVA dry-type transformer is widely used in multiple industries, including but not limited to:

　　Industrial Plants: Provides stable power supply for large-scale manufacturing, mining, electrolytic aluminum, and other industries.

　　Commercial Buildings: Ensures the stability and safety of power systems in shopping malls, hotels, and office buildings.

　　Public Facilities: Enhances the safety and reliability of power supply in hospitals, fire alarm systems, traffic signals, and other public facilities.

　　Renewable Energy Projects: Contributes to green energy in wind and solar power generation projects.

　　IV. Price and Customization Services

　　Price Range: The price of the SCB14-1600KVA dry-type transformer varies depending on the brand, configuration, and customization requirements. Generally, the price range for standard models is between 180,000 to 250,000 yuan (for domestic brands), while high-configuration models may cost between 250,000 to 350,000 yuan (for foreign brands). Special customized products may exceed 300,000 yuan.

　　Customization Services: Provides tailored solutions according to the diverse needs of users. For example, customization options include protection class (such as IP54), additional functions (such as a temperature control system with RS485 communication, automatic fan start/stop, etc.), and special dimensions.
