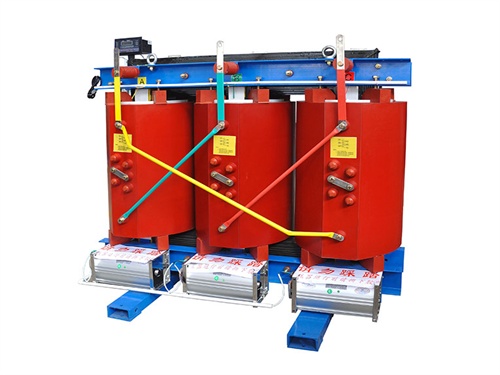

Insulation Class of Dry-Type Transformers

　　The insulation class of a dry-type transformer is a critical indicator of the thermal endurance of its insulating materials, directly influencing the transformer's operational reliability, service life, and safety. Below is a detailed explanation covering the definition, classification, standards, influencing factors, and selection recommendations for insulation classes:

　　1. Definition of Insulation Class

　　The insulation class refers to the maximum temperature that the insulating materials of a transformer can withstand during long-term operation, typically expressed in terms of the thermal endurance class of the insulating materials. A higher insulation class indicates better thermal endurance of the materials, enhancing the transformer's overload capability and extending its service life.

　　2. Classification of Insulation Classes

　　According to the International Electrotechnical Commission (IEC) and national standards, the insulation classes of dry-type transformers are primarily categorized as follows:

　　3. Standards for Insulation Classes

　　International Standards: IEC 60076-11 (Dry-Type Transformers Standard) specifies the classification and testing methods for insulation classes.

　　National Standards: GB 1094.11 (Chinese Standard) is largely consistent with IEC standards, defining the classification and requirements for insulation classes.

　　Testing Methods: Thermal aging tests, temperature rise tests, etc., are conducted to verify the thermal endurance of insulating materials.

　　4. Factors Influencing Insulation Class

　　Material Selection:

　　The thermal endurance of insulating materials directly determines the insulation class. For example, Class H insulating materials typically use silicone rubber or Nomex paper, which offer higher temperature resistance.

　　Manufacturing Process:

　　The impregnation and curing processes of insulating materials affect their thermal endurance. For instance, vacuum impregnation can enhance the density and thermal endurance of insulating materials.

　　Operating Environment:

　　Environmental factors such as temperature, humidity, and pollution levels can impact the lifespan of insulating materials. High-temperature and high-humidity environments accelerate insulation aging.

　　Load Conditions:

　　Prolonged overload operation leads to increased transformer temperature, accelerating the aging of insulating materials and reducing the insulation class.

　　5. Relationship Between Insulation Class and Transformer Performance

　　Temperature Rise Limitation:

　　A higher insulation class allows for a higher temperature rise limitation of the transformer. For example, a Class F insulated transformer typically has a temperature rise limitation of 100K (with a maximum winding temperature of 140°C at an ambient temperature of 40°C).

　　Overload Capability:

　　Transformers with higher insulation classes possess stronger overload capabilities. For instance, a Class H insulated transformer can withstand higher loads for short periods.

　　Service Life:

　　A higher insulation class extends the expected service life of the transformer. According to Arrhenius' law, reducing the temperature by 8-10°C doubles the insulation lifespan.

　　6. Selection Recommendations for Insulation Class

　　Based on Load Conditions:

　　Low-load applications: Class A or E insulation is sufficient and cost-effective.

　　High-load applications: Class F or H insulation is recommended to enhance transformer reliability and lifespan.

　　Based on Ambient Temperature:

　　High-temperature environments: Such as tropical regions or confined spaces, Class H insulation is advised.

　　Low-temperature environments: Class A or B insulation is suitable, but attention should be paid to mechanical strength at low temperatures.

　　Based on Economy:

　　Transformers with higher insulation classes are more expensive but can reduce maintenance and replacement costs. A balance between initial investment and long-term operating costs should be considered.

　　Based on Special Requirements:

　　High fire-resistance requirements: Such as in hospitals and schools, Class H insulation is recommended, paired with flame-retardant materials.

　　Noise-sensitive environments: Transformers with higher insulation classes are often more compact, potentially generating higher noise levels, requiring comprehensive consideration.

　　7. Maintenance and Inspection of Insulation Class

　　Regular Inspections:

　　Check the transformer's temperature, noise, vibration, and other parameters to promptly detect abnormalities.

　　Insulation Resistance Testing:

　　Regularly measure the insulation resistance of windings to assess the insulation condition.

　　Infrared Thermography Inspection:

　　Use infrared thermography to detect temperature distributions in the transformer and identify local overheating issues.

　　Preventive Testing:

　　Conduct withstand voltage tests, partial discharge tests, etc., in accordance with standards to verify insulation performance.

　　8. Summary

　　The insulation class of a dry-type transformer is a key factor affecting its performance and lifespan. When selecting an insulation class, it is essential to comprehensively consider load conditions, ambient temperature, economy, and special requirements. Regular maintenance and inspections are crucial measures to ensure the long-term stable operation of the transformer. Through reasonable selection and scientific maintenance, the reliability and service life of the transformer can be significantly improved.
