In-Depth Analysis of Amorphous Alloy Transformer Performance

　　I. Core Performance Advantages

　　1. Ultra-Low No-Load Loss

　　Adopting iron-based amorphous alloy as the core material, its disordered atomic structure reduces hysteresis and eddy current losses by 70%-80% compared to traditional silicon steel. For example, a 500kVA amorphous alloy transformer has a no-load loss of only 190W, which is 20% of that of an S9-type transformer (900W).

　　Significant energy-saving benefits: If S9-series distribution transformers are fully replaced, annual electricity savings could reach 10 billion kWh, reducing CO₂ emissions by 20-30 million tons.

　　2. Efficient Operation Characteristics

　　Magnetic permeability is 40% higher than that of silicon steel, enabling efficient operation at low magnetic flux densities of 1.3-1.35T, with load losses reduced by 10%-15%.

　　Excellent temperature stability: Amorphous alloy has a low thermal expansion coefficient and strong resistance to thermal shock, maintaining stable performance within a temperature range of -40°C to 250°C.

　　3. Environmental and Economic Benefits

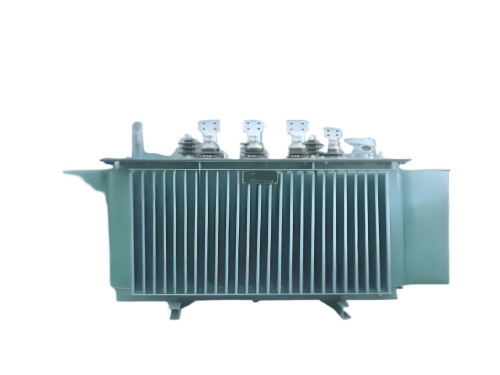

　　Fully sealed structural design: The oil tank adopts a corrugated sheet structure, completely isolating the internal insulating oil from air, extending the service life to over 30 years and reducing maintenance costs by 50%.

　　Total Cost of Ownership (TCO) advantage: Although initial procurement costs are 30% higher than those of S13 transformers, cost differentials can be recovered through energy savings within 3-5 years.

　　II. Detailed Technical Characteristics

　　1. Breakthroughs in Material Science

　　Amorphous alloy strip thickness is only 0.025-0.03mm, one-tenth that of silicon steel, with a stacking factor of 82%-86%. High-precision assembly is achieved through laser welding.

　　Special annealing treatment: Processing stresses are eliminated in a 400°C magnetic field environment to ensure minimal core losses.

　　2. Innovative Structural Design

　　Four-frame five-limb core structure: Each phase winding is independently mounted on two magnetic circuit frames, canceling out third-harmonic magnetic fluxes and reducing secondary-side voltage waveform distortion to <1%.

　　Foil winding technology: Low-voltage windings are wound using copper or aluminum foil, improving axial short-circuit force resistance by 40% and achieving 1.8 times the IEC standard for sudden short-circuit withstand capability.

　　3. Electromagnetic Performance Optimization

　　Dyn11 connection group: Effectively suppresses third harmonics, reducing Total Harmonic Distortion (THD) to <2%, compliant with IEEE 519 standards.

　　Noise control: Through magnetostrictive compensation technology, noise levels at 1 meter are ≤55dB, meeting residential nighttime usage requirements.

　　III. Expansion of Application Fields

　　1. Power Systems

　　Urban distribution network upgrades: Replacing traditional transformers at the 10kV/0.4kV level reduces line loss rates from 6.8% to 4.2%.

　　Renewable energy integration: Compatible with photovoltaic inverters (50Hz-2kHz) and wind turbine converters (3kHz-10kHz), achieving an efficiency of 98.5%.

　　2. Industry and Infrastructure

　　Metallurgical sector: Provides stable power for electric arc furnaces (with load fluctuations of 50%-120%), increasing power factors from 0.78 to 0.92.

　　Rail transit: In subway traction substations, amorphous alloy transformers reduce volume by 35% compared to traditional products, lowering installation space requirements.

　　3. Special Scenario Adaptation

　　Offshore platforms: Salt spray corrosion-resistant design, with insulating systems passing 2000-hour IEC 60068-2-52 salt spray tests without degradation.

　　Polar research stations: -60°C ultra-low temperature start-up tests demonstrate no-load loss increases of <5%.

　　IV. Limitations and Countermeasures

　　1. Material Brittleness Challenges

　　Problem: Amorphous alloy strip has a tensile strength of only 300MPa (compared to 500MPa for silicon steel), with processing breakage rates of 8%-12%.

　　Solution: Adopting ultrasonic cutting technology reduces breakage rates to <2%.

　　2. Cost Constraints

　　Current status: Amorphous alloy strip costs account for 45% of total transformer costs (compared to 25% for silicon steel).

　　Breakthrough direction: Continuous strip production processes could increase material utilization rates from 65% to 85%.

　　3. Standardization Progress

　　Current developments: IEC 60076-22 "Special Test Guide for Amorphous Alloy Transformers" has been released, covering specialized tests for vibration resistance, radiation resistance, etc.

　　Future directions: Establishing type test standards covering a wide temperature range of -60°C to 250°C.

　　V. Development Trends and Prospects

　　1. Performance Iteration Paths

　　Second-generation nanocrystalline alloy transformers: Saturated magnetic induction increases to 1.6T, with no-load losses reduced by an additional 20%.

　　Intelligent amorphous alloy transformers: Integrating fiber-optic temperature measurement and online monitoring, achieving fault warning accuracy rates of 95%.

　　2. Market Penetration Forecasts

　　Global market size: Expected to reach $12 billion by 2025, with a compound annual growth rate of 18%.

　　Chinese market: Driven by the "dual carbon" goals, penetration rates in new infrastructure sectors will rise from 15% to 35%.

　　3. Technological Convergence Innovations

　　Synergy with SiC power devices: Building highly efficient power conversion systems with overall efficiencies exceeding 99%.

　　3D-printed core technology: Enabling the manufacture of complex topological structures, further reducing no-load losses by 15%.

　　Conclusion

　　Amorphous alloy transformers are reshaping energy efficiency standards in power transmission through their revolutionary material properties and system-level optimizations. Despite facing challenges in cost and processing, with technological breakthroughs and economies of scale, they are poised to accelerate their penetration from specialized to general markets, becoming key equipment in building new power systems.
